Π TAPE FOR GROOVING MEASURING ON PIPES
This Π tape also called OD tapes. O.D, outside diameter pipe or pipe tapes. It is a tool to a tool used for controlling the groove depth after grooving and before pipe installation. The tape also has millimeter scale for measuring the pipe diameter.
Product Introduction

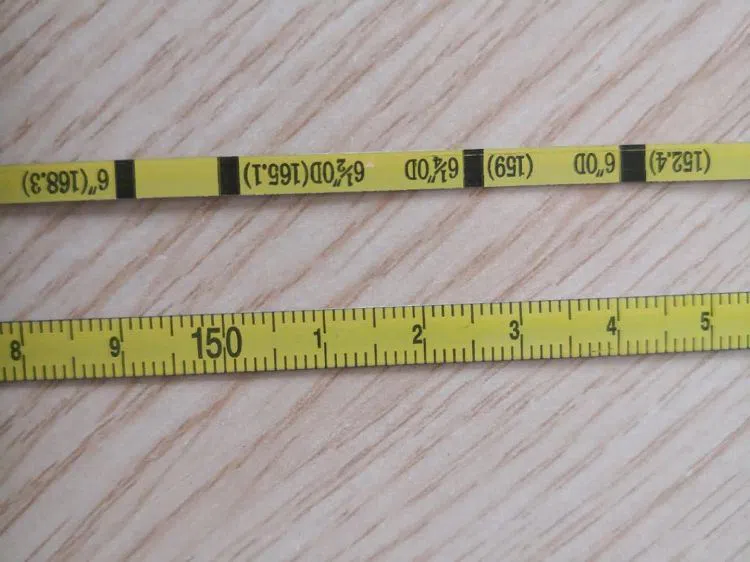

Simply wrap the Π tape around the grooved pipe, and read off the "diameter scale" side. To read the circumference, simply use the other side of the scale. Pipe O.D. tapes are used in construction and engineering, It is less cumbersome than calipers and micrometers. We have a variety of pipe diameter tapes for the executive and contractor. They are handy, which fit easily in your pocket. Available in both INCH and METRIC.
Product details
Measuring range: DN20-DN600 (3/4”-24”).
Tape length: 200cm.
Size(LXBXH): 47X42X14(mm).
Weight: 0.08kgs.

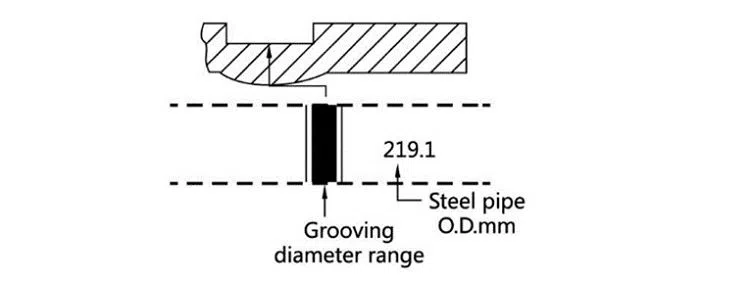

GROOVE DIMENSIONS | |||||||
Pipe Outside Dia. O. D | Gasket Seat A+/-0.76 | Grv - Width | Groove Dia.-C | Groove Depth D | Min. Allow. Wall Thk. T | Max. Allow. Flare Dia. | |
Basic | Tol. +0.00 | ||||||
33.4 | 15.88 | 7.14 | 30.23 | -0.38 | 1.60 | 1.65 | 36.3 |
42.2 | 15.88 | 7.14 | 38.99 | -0.38 | 1.60 | 1.65 | 45.0 |
48.3 | 15.88 | 7.14 | 45.09 | -0.38 | 1.60 | 1.65 | 51.1 |
60.3 | 15.88 | 8.74 | 57.15 | -0.38 | 1.60 | 1.65 | 63.0 |
73.0 | 15.88 | 8.74 | 69.09 | -0.46 | 1.98 | 2.11 | 75.7 |
76.1 | 15.88 | 8.74 | 72.26 | -0.46 | 1.98 | 2.11 | 78.7 |
88.9 | 15.88 | 8.74 | 84.94 | -0.46 | 1.98 | 2.11 | 91.4 |
101.6 | 15.88 | 8.74 | 97.38 | -0.51 | 2.11 | 2.11 | 104.1 |
108.0 | 15.88 | 8.74 | 103.73 | -0.51 | 2.11 | 2.11 | 110.5 |
114.3 | 15.88 | 8.74 | 110.08 | -0.51 | 2.11 | 2.11 | 116.8 |
127.0 | 15.88 | 8.74 | 122.78 | -0.51 | 2.11 | 2.41 | 129.5 |
133.0 | 15.88 | 8.74 | 129.13 | -0.51 | 2.11 | 2.77 | 135.9 |
139.7 | 15.88 | 8.74 | 135.48 | -0.51 | 2.11 | 2.77 | 142.2 |
141.3 | 15.88 | 8.74 | 137.03 | -0.56 | 2.13 | 2.77 | 143.8 |
152.4 | 15.88 | 8.74 | 148.08 | -0.56 | 2.16 | 2.77 | 154.9 |
159.0 | 15.88 | 8.74 | 154.68 | -0.56 | 2.16 | 2.77 | 161.3 |
165.1 | 15.88 | 8.74 | 160.78 | -0.56 | 2.16 | 2.77 | 167.6 |
168.3 | 15.88 | 8.74 | 163.96 | -0.56 | 2.16 | 2.77 | 170.9 |
203.2 | 19.05 | 11.91 | 198.53 | -0.64 | 2.34 | 2.77 | 207.5 |
216.3 | 19.05 | 11.91 | 211.60 | -0.64 | 2.34 | 2.77 | 220.7 |
219.1 | 19.05 | 11.91 | 214.40 | -0.64 | 2.34 | 2.77 | 223.5 |
254.0 | 19.05 | 11.91 | 249.23 | -0.69 | 2.39 | 3.40 | 258.3 |
267.4 | 19.05 | 11.91 | 262.60 | -0.69 | 2.39 | 3.40 | 271.8 |
273.0 | 19.05 | 11.91 | 268.28 | -0.69 | 2.39 | 3.40 | 277.4 |
304.8 | 19.05 | 11.91 | 299.24 | -0.76 | 2.77 | 3.96 | 309.1 |
318.5 | 19.05 | 11.91 | 312.90 | -0.76 | 2.77 | 3.96 | 322.8 |
323.9 | 19.05 | 11.91 | 318.29 | -0.76 | 2.77 | 3.96 | 328.2 |
355.6 | 23.83 | 11.91 | 350.04 | -0.76 | 2.77 | 3.96 | 359.7 |
377.0 | 23.83 | 11.91 | 371.12 | -0.76 | 2.94 | 4.50 | 381.0 |
381.0 | 23.83 | 11.91 | 375.44 | -0.76 | 2.77 | 4.19 | 385.1 |
406.4 | 23.83 | 11.91 | 400.84 | -0.76 | 2.77 | 4.19 | 410.5 |
426.0 | 23.83 | 11.91 | 419.16 | -0.89 | 3.27 | 4.50 | 430.0 |
457.0 | 25.40 | 11.91 | 451.64 | -0.76 | 2.77 | 4.19 | 461.3 |
480.0 | 25.40 | 11.91 | 473.10 | -0.89 | 3.45 | 6.00 | 484.1 |
508.0 | 25.40 | 11.91 | 502.44 | -0.76 | 2.77 | 4.78 | 512.1 |
530.0 | 25.40 | 11.91 | 522.53 | -0.89 | 3.73 | 6.00 | 534.2 |
559.0 | 25.40 | 12.70 | 550.06 | -0.76 | 4.37 | 4.78 | 563.9 |
610.0 | 25.40 | 12.70 | 600.86 | -0.76 | 4.37 | 5.54 | 614.7 |
630.0 | 25.40 | 12.70 | 621.26 | -0.89 | 4.37 | 7.00 | 635.0 |
