Roll grooving is a widely used mechanical method in pipe joining systems, primarily employed in industrial, plumbing, and mechanical piping applications. Unlike traditional methods such as welding or threading, roll grooving utilizes a pipe roll grooving machine to create a cold-formed groove on the pipe's exterior without removing any material. This groove allows for the use of grooved couplings, which facilitate secure, leak-proof, and flexible pipe connections.

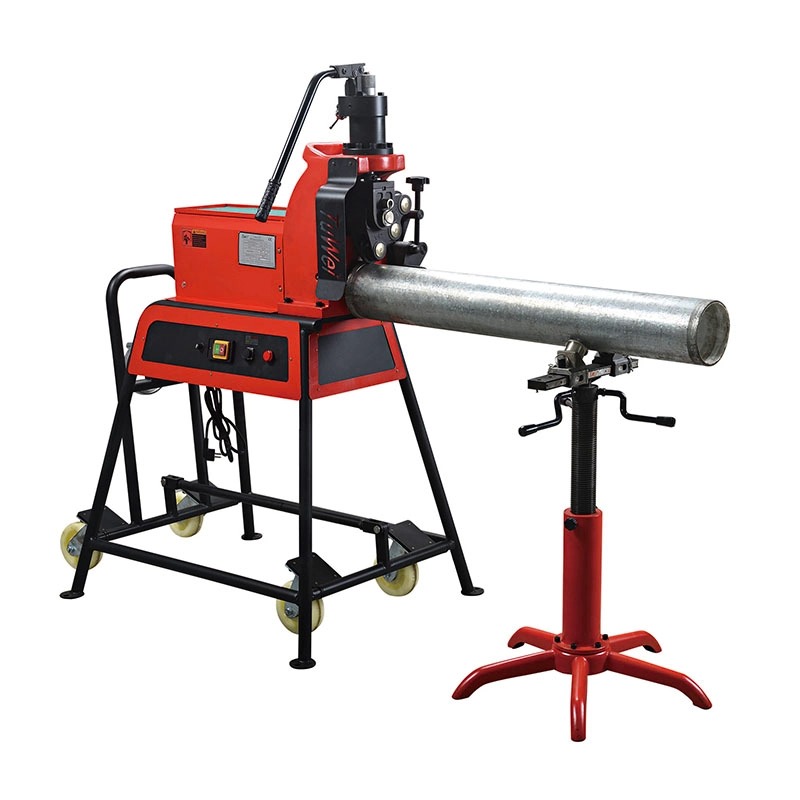

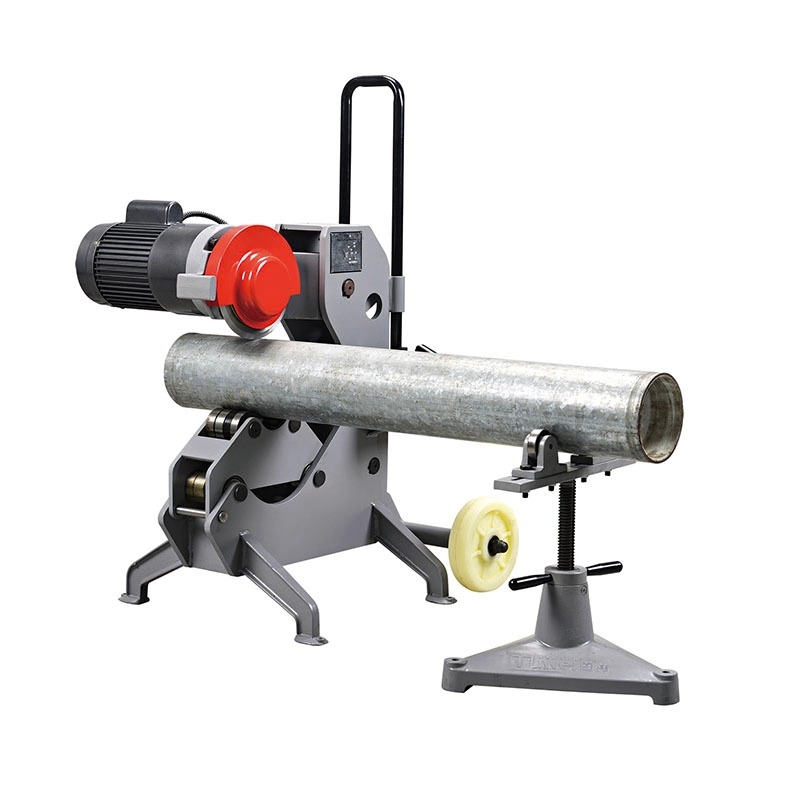

A pipe roll grooving machine consists of a drive roller and a grooving roller. When the pipe is positioned between them, the machine rotates the pipe while applying pressure to form a precise groove around its circumference. This process not only ensures structural integrity but also maintains the pipe's original wall thickness, minimizing the risk of weakening the pipe.
Grooved systems are especially favored in environments where quick installation and flexibility are required, such as fire protection systems, HVAC, and water distribution networks. But what happens when pipe specifications exceed standard dimensions? That leads us to the critical question: Can roll grooving be used on thick-walled or large-diameter pipes? Let’s explore this in depth.
Thick-walled pipes—typically defined as having a wall thickness greater than Schedule 80—present unique challenges for any machining process. The increased material mass resists deformation more significantly during cold forming. This means that applying a roll groove to such pipes requires significantly more force and a grooving machine with reinforced components and higher torque output.
Additionally, improper grooving on thick-walled pipes can result in incomplete groove formation or surface cracks, which can compromise pipe performance under pressure. A standard pipe roll grooving machine may struggle to apply sufficient force or achieve a consistent groove depth in these cases. Therefore, machines designed specifically for heavy-duty industrial applications are essential.
For large-diameter pipes (commonly 12” or above), the concern shifts toward pipe stability and uniform rotation during grooving. The sheer size and weight of these pipes require larger roller supports and stronger motors. Maintaining consistent pressure and groove depth over a larger surface area is another challenge that only advanced machines can handle efficiently.
In summary, both thick walls and large diameters demand enhanced mechanical strength, precise calibration, and operator expertise. When these elements are properly addressed, roll grooving can indeed be successfully applied to oversized pipes.
Modern pipe roll grooving machines are designed with heavy-duty capabilities in mind. Manufacturers have introduced various innovations to enable the grooving of thick-walled and large-diameter pipes. Some of these design enhancements include:
Hydraulic-driven systems: Instead of mechanical cranks or belts, hydraulic power offers a higher torque-to-size ratio, making it suitable for grooving high-strength pipe materials such as stainless steel and carbon steel.
Reinforced grooving rollers: Hardened alloy steel rollers maintain structural integrity even under immense pressure, enabling deeper grooves on thick pipes without wear.
Adjustable support rollers: To accommodate large-diameter pipes, adjustable rollers provide better pipe alignment and rotation stability.
Automated feed control: Modern machines offer automated pressure and feed rate adjustments to maintain groove consistency and avoid over-pressurizing any pipe segment.
Here’s a quick comparison of standard vs. industrial-grade pipe roll grooving machines:
| Feature | Standard Roll Grooving Machine | Industrial-Grade Roll Grooving Machine |
|---|---|---|
| Suitable Pipe Diameter | Up to 12 inches | Up to 24–60 inches |
| Max Wall Thickness | Schedule 40 | Schedule 80 and beyond |
| Drive System | Mechanical | Hydraulic or Servo |
| Automation | Manual or semi-auto | Fully automated |
| Application | Light-duty systems | High-pressure pipelines, oil & gas |
These machines also incorporate fail-safes to prevent over-grooving, which is crucial when working with thicker pipes where excessive material displacement could weaken the pipe structure or result in coupling misalignment.
Thick-walled and large-diameter pipes are not used randomly—they serve essential purposes in industrial and municipal systems. Roll grooving proves invaluable in several sectors:
Power generation plants: These require robust pipe networks capable of handling high-pressure steam and water. The use of grooved couplings allows for rapid installation, maintenance, and reconfiguration without compromising safety.
Chemical and oil refineries: Pipelines carry volatile or corrosive fluids under pressure, necessitating both pipe wall strength and flexibility in connection types. Grooved systems reduce welding risks in flammable environments.
Municipal water supply systems: Large-diameter pipes (up to 60”) are common. Grooved connections allow for flexibility in underground installation and shock absorption during heavy water flow or seismic activity.
Shipbuilding and marine engineering: Space constraints make grooved connections favorable. Thick-walled pipes used in marine engines and fire systems benefit from fast coupling and decoupling.
In each of these use cases, industrial-grade pipe roll grooving machines are not optional—they are a necessity. They bring not only the strength but also the precision required to meet engineering standards and safety protocols.
Q1: Will roll grooving compromise the strength of a thick-walled pipe?
A: No. In fact, one of the key advantages of roll grooving is that it’s a cold-forming process. Unlike cutting or threading, roll grooving displaces material rather than removing it. This means the pipe’s original thickness and structural strength are largely maintained.
Q2: What pipe materials can be roll grooved if they are thick or large in size?
A: Most modern machines can handle a wide range of materials including carbon steel, ductile iron, stainless steel, and even some plastics. However, material hardness must be considered when selecting a grooving machine.
Q3: Is it safe to use roll grooving in seismic or high-vibration environments?
A: Yes. One of the primary reasons grooved couplings are favored in seismic zones is their ability to flex and absorb vibration. When paired with proper installation and coupling selection, grooved pipes outperform rigid systems under dynamic conditions.
Q4: What are the limitations of using pipe roll grooving machines?
A: The main limitations are related to the machine's capacity—diameter, wall thickness, and material hardness. It’s crucial to select a machine rated for the specific pipe characteristics. Overstretching a machine beyond its specifications can lead to poor groove quality and equipment damage.
Before selecting a pipe roll grooving machine, engineers and project managers should conduct a detailed assessment of the following:
Pipe wall thickness and material grade: Ensure the machine's rollers and drive system can handle the intended load.
Pipe outer diameter range: Choose a machine that accommodates the full range of pipe sizes used in your system.
Volume and speed requirements: For high-volume production environments, automated or hydraulic machines will offer better efficiency.
Worksite conditions: In fixed plants, larger floor models are suitable. For on-site or mobile jobs, consider compact or portable models.
Investing in the right machine not only improves productivity but also reduces long-term maintenance and labor costs. Mismatched machinery, on the other hand, can cause project delays, inconsistent quality, and costly rework.
So, can roll grooving be used on thick-walled or large-diameter pipes? The answer is a definitive yes, provided the process is supported by industrial-grade machinery, proper planning, and technical know-how.
Pipe roll grooving machines have evolved far beyond their traditional applications. With hydraulic assistance, reinforced rollers, and intelligent controls, they now empower contractors and engineers to groove pipes once considered too challenging or time-consuming. This advancement not only broadens the scope of roll grooving but also reinforces its place as a cornerstone of modern pipe connection technology. Whether you’re managing municipal infrastructure, industrial cooling systems, or oil pipelines, investing in a high-capacity roll grooving machine ensures you're prepared for the most demanding piping challenges—thick, large, or both.
