To read a pipe diameter tape, wrap the tape flat around the clean outer circumference of the pipe, ensure the tape does not twist, overlap the zero index mark with the main measuring scale, read the primary diameter value in inches or millimeters, and then align the vernier scale markings to find the precise decimal measurement down to hundredths of an inch or tenths of a millimeter. This dual-scale observation gives you the exact Pi-converted outside diameter ($OD$) instantly without requiring any manual mathematical calculations.
This comprehensive technical guide will walk you through the structural mechanics of diameter tapes, outline step-by-step instructions for reading both standard and specialized groove measuring versions, compare structural technical data, and provide best practices for maintaining calibration accuracy in rugged field environments.
Section | Summary |
What Is a Pipe Diameter Tape and How Does It Work | Explains the mechanical design, mathematical foundation based on Pi ($\pi$), and industrial utility of diameter tapes. |
Comprehensive Guide on How to Read a Pipe Diameter Tape | Provides a granular, step-by-step methodology for aligning the zero index and reading primary and decimal values. |
The Structural Role of Pipe Groove Tape in Modern Piping | Details how specialized groove tapes ensure mechanical compliance, standardizing coupling joints in heavy industries. |
Comparative Analysis of Standard Measuring Tapes vs Specialized Diameter Tapes | Features a detailed structural and functional comparison table demonstrating why standard tools fail on cylinders. |
Troubleshooting Common Pitfalls and Maintenance Practices for Diameter Tapes | Identifies common alignment, thermal, and surface errors while outlining strict maintenance protocols for field tools. |
A pipe diameter tape is a specialized precision measurement tool engineered with a mathematically compensated scale that instantly converts the outer circumference of a cylindrical object into an accurate direct outer diameter measurement. By utilizing the intrinsic mathematical relationship where Circumference equals Pi multiplied by Diameter ($C = \pi D$), the markings on the tape are pre-scaled by a factor of 3.14159. This compensation ensures that when an operator reads a linear distance wrapped around a pipe, the value displayed on the tape is the actual, un-calculated diameter of the cylinder.
The core engineering behind this tool relies entirely on geometry. On a standard linear ruler, an inch mark is exactly one linear inch away from the next. On a diameter tape, each designated "inch" marker is actually spaced exactly 3.14159 linear inches apart. This mathematical expansion eliminates the need for field operators to carry calculators, reduce manual data entry errors, and accelerate quality control verification times on busy industrial construction sites.
Furthermore, high-grade variations of these tools integrate a precise vernier scale system on the leading edge of the blade. The vernier scale allows technicians to break down the primary units into microscopic fractions, achieving measurement granularities as precise as 0.001 inches or 0.01 millimeters. This level of extreme precision is mandatory when preparing piping networks for heavy mechanical coupling joints, where even a fraction of a millimeter deviation can compromise seal integrity.
In critical infrastructure applications, engineers frequently utilize highly specialized variants such as a heavy-duty Pipe Groove Tape to inspect the outer diameter of grooved pipe ends. These field tools ensure that the structural groove dimensions conform precisely to mechanical guidelines, guaranteeing that heavy-duty couplings sit securely within their designated channels. Without the mathematical reliability of these pre-scaled measuring tapes, tracking structural variations across kilometers of industrial piping would become an inefficient, error-prone operational bottleneck.
Instant Mathematical Conversion: Eliminates the necessity of manual calculations or digital conversions in the field, reducing mathematical error rates to zero.
Single-Point Point of Calibration: Measures the true average diameter across the entire perimeter in a single pass, compensating naturally for minor ovality or out-of-round pipe geometry.
High Portability and Speed: Provides micrometer-level precision in a flexible, pocket-sized form factor that outperforms bulky mechanical calipers on large-diameter lines.

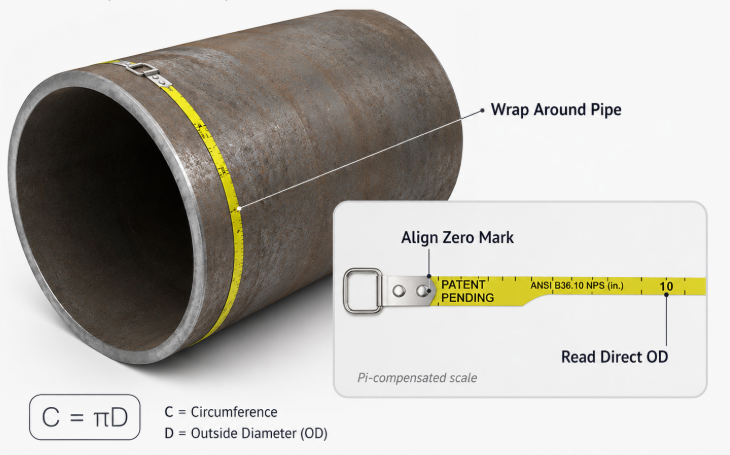

Reading a pipe diameter tape requires wrapping the flexible blade smoothly around a clean section of the pipe, overlapping the zero-index alignment mark with the active running scale, reading the whole integer unit immediately to the left of the zero mark, and then locating the exact vernier line that aligns perfectly with a main scale division. This precise process transforms a circular wrap into a hyper-accurate, multi-decimal linear value. Mastering this alignment routine prevents measurement drift and ensures consistency across multiple quality assurance teams.
To perform a professional-grade measurement, the operator must first ensure the pipe surface is completely clear of rust, scaling, dirt, or thick protective coatings that could artificially expand the circumference. The tape is then extended and wrapped squarely around the cylinder perpendicular to the long axis of the pipe. If the tape is wrapped at an angle, it creates an elliptical pathway rather than a true circular pathway, resulting in an over-estimation of the actual outer diameter.
Once the tape is snugly positioned against the pipe wall, the operator looks at the intersection point where the zero-index marker line (often marked with an arrow or a distinct "0" baseline) meets the upper running scale. The whole number integer and the first decimal place are determined by reading the last visible graduation on the main scale that falls before the zero index mark.
To determine the highly precise second and third decimal places, the technician employs the vernier scale printed along the bottom edge of the tool. The technician scans from left to right along the vernier markings until identifying the exact graduation line that forms a perfectly continuous vertical line with a graduation mark on the main upper scale. The value of that specific vernier line represents the hundredths or thousandths unit, which is added directly to the primary reading for a final, hyper-accurate diameter value.
Surface Preparation: Clean the target measurement zone with a wire brush to remove any external debris, slag, or loose mill scale that could skew the tape's seating.
Perpendicular Alignment: Wrap the tape around the pipe perimeter, ensuring the blade lies completely flat against the metal and runs perfectly square to the longitudinal axis.
Zero-Index Overlay: Overlap the leading edge of the tape over the running body, aligning the zero line parallel to the secondary measurement markings.
Primary Unit Identification: Read the value on the main scale situated immediately to the left of the zero index line to establish your base measurement.
Vernier Alignment Check: Look across the vernier scale lines to find the single point of perfect vertical alignment with the upper scale, and append this value to your base figure.
The structural integration of a specialized pipe groove tape ensures that roll-grooved or cut-grooved pipe ends fall perfectly within strict engineering tolerances specified for mechanical joint assembly. In modern industrial piping, sections are often joined using mechanical couplings that clamp into a recessed groove indented near the pipe tip rather than relying on traditional welding. If this groove is machined too deep or too shallow, the mechanical coupling cannot engage correctly, resulting in joint failure, blowouts, or localized fluid leakage.
Using a specialized precision grooved pipe diameter tape allows operators to perform fast, on-site audits of groove depth and groove diameter right next to the pipe processing machinery. These tools feature specialized narrow-width blades that can slip effortlessly inside the narrow channels of a rolled groove, providing a direct readout of the groove's root diameter without requiring clumsy mechanical calipers or complex micrometers.
Industrial operations utilize these specialized tapes to maintain rigorous quality control loops. For instance, when configuring fire protection sprinkler systems or mining slurry lines, field teams must verify hundreds of grooved ends per shift. The specialized tape provides a reliable verification tool that confirms whether the groove profile matches standard configurations, such as those popularized by major industrial pipe joining systems worldwide.
By implementing a certified industrial Pipe Groove Tape across your fabrication facility, operators can rapidly detect tool wear on roll-grooving machines. If the groove diameter begins to drift toward the upper or lower boundary limits, the tape readings immediately highlight the deviation, allowing engineers to recalibrate the machinery before defective pipe segments are shipped to the construction site.
Fire Protection Systems: Validates thousands of rolled grooves on thin-walled steel pipes to ensure structural integrity under sudden high-pressure surges.
HVAC Commercial Infrastructure: Verifies large-bore chilled water lines where mechanical couplings must absorb thermal expansion and contraction cycles.
Water Treatment and Desalination Plants: Ensures precise joint configurations on corrosive-resistant coated pipes without scratching or damaging the protective linings.
Selecting between a traditional linear tape measure and a specialized diameter validation tool depends entirely on your geometric target and the tolerance thresholds required by your engineering specifications. Standard linear tapes measure straight distances across flat planes, making them fundamentally unsuited for delivering accurate, instantaneous radial or diametrical dimensions on curved surfaces. Attempting to use a standard tape introduces multi-step mathematical calculations that increase the risk of errors during rapid field audits.
To highlight the operational contrasts between these two measurement methods, the table below provides a side-by-side technical comparison of their performance capabilities, mathematical foundations, and industrial field applications.
Technical Parameter | Standard Linear Tape Measure | Specialized Diameter Tape / Pipe Groove Tape |
Primary Scale Unit | Linear Inches / Centimeters ($1:1$) | Pi-Compensated Units ($1:\pi$) |
Mathematical Requirement | Requires manual division by $3.14159$ | None; delivers direct diameter readouts |
Average Accuracy Range | $\pm 1.50\text{ mm}$ ($\pm 1/16\text{ inch}$) | $\pm 0.03\text{ mm}$ ($\pm 0.001\text{ inch}$) via Vernier |
Ovality Compensation | Fails to account for out-of-round deformation | Automatically averages the diameter across 360° |
Groove Seating Capability | Too wide; cannot seat flat in recessed channels | Narrow, ultra-flexible blade engineered for grooves |
Optimal Use Cases | Structural lengths, layout routing, linear cuts | Quality control, groove verification, $OD$ tracking |
As demonstrated by the technical parameters, relying on standard tools for high-precision cylindrical auditing introduces unnecessary risks into an industrial workflow. For operations dealing extensively with grooved joining systems, using a tailored Victaulic Pipe Tape alternative provides the exact dimensional feedback needed to keep field installations moving efficiently without expensive rework.
Avoiding common reading mistakes and implementing a strict cleaning protocol are vital steps for preserving the measurement accuracy and extending the operational lifespan of your precision diameter tapes. Even the most carefully calibrated tape can deliver faulty readings if it is subject to severe thermal expansion, kinked blades, or improper tensioning by the field technician. Because these tools are used in heavy industrial environments, they are regularly exposed to abrasive grit, moisture, and chemical solvents that can degrade the etched markings over time.
One of the most frequent errors in the field is applying inconsistent tension during measurement. Pulling the tape too tightly can slightly stretch the flexible steel blade, leading to artificially low diameter readings. Conversely, letting the tape sag or sit loosely against the pipe wall introduces gaps that falsely inflate the measured outer diameter. Technicians should apply a gentle, uniform tension—typically around 5 newtons of force—just enough to pull the blade flush against the cylinder surface without inducing physical strain on the metal tape.
Thermal stability is another crucial variable often overlooked during outdoor construction or industrial fabrication. Extreme heat or freezing temperatures cause steel to expand or contract. If a tape has been sitting in direct sunlight on a hot summer day, its base calibration will skew. Best practice dictates storing precision measuring instruments in temperature-controlled cases and allowing the tape to acclimatize to the ambient environment of the workpieces before recording critical validation data.
Finally, managing tool cleanliness directly prevents measurement degradation. After every shift, the tape blade should be extended, wiped clean with a dry microfiber cloth to remove oil, moisture, or metallic dust, and lightly coated with a thin layer of high-grade instrument oil to prevent rust. The blade must be inspected regularly for kinks or twists; a bent tape will never lay flat against a pipe surface, rendering its Pi-compensated scale inaccurate for quality control validation.
Regular Calibration Audits: Periodically check the tape against a certified master cylinder of known diameter to verify scale accuracy.
Kink and Bend Inspection: Run the blade between your fingers to check for micro-kinks or edge nicks that could prevent the tape from wrapping completely flat.
Moisture Prevention: Never retract a wet or damp tape into its spring-loaded housing; always dry the blade completely to stop internal corrosion.
Tension Standardization: Train quality control teams to apply consistent, moderate pulling tension during all active measurement procedures.
Mastering how to read a pipe diameter tape is a fundamental skill that bridges the gap between field fabrication and precise engineering design. By utilizing the integrated Pi-compensated scale, industrial professionals can instantly capture accurate outer diameter dimensions, bypass slow manual calculations, and keep complex assembly lines moving smoothly. Whether you are validating massive raw steel columns or verifying the precision channels on a specialized grooved pipe diameter tape application, adhering to proper alignment, tensioning, and cleaning steps ensures your data remains accurate over time. Investing in high-quality measuring tools and maintaining strict calibration protocols protects your piping networks from structural failures, operational downtime, and costly fluid leaks.
