In the world of piping systems, achieving secure and reliable connections is non-negotiable. One vital tool that has transformed how pipe connections are formed is the Pipe Roll Grooving Machine. This machine plays an essential role in preparing pipes for mechanical joining methods, particularly for grooved piping systems commonly used in fire protection, HVAC, and industrial installations. In this guide, we’ll explore the working principles, applications, benefits, and critical specifications of the Pipe Roll Grooving Machine to help you understand why it has become indispensable in modern pipework solutions.
The Pipe Roll Grooving Machine is a specialized industrial tool designed to create precise grooves near the ends of pipes. These grooves enable the use of mechanical couplings or fittings that replace traditional welding or flanged connections. The roll grooving process is typically cold-formed, meaning it doesn’t require heat, preserving the pipe’s structural integrity.
The machine operates using two primary components: a grooving roll and a drive roll. The pipe is rotated between these two, and as pressure is applied, a groove is formed around the outer circumference. This groove is where the coupling gasket and housings fit securely, creating a leak-free, mechanical joint.
This technology is highly efficient and widely applied in systems requiring fast installation, ease of maintenance, and adaptability to complex piping configurations.

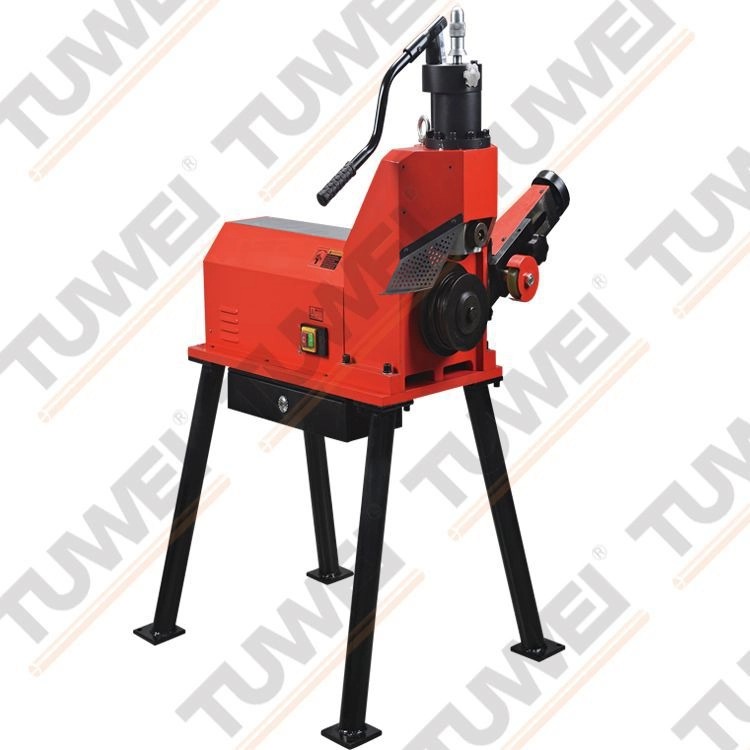

The structure of a Pipe Roll Grooving Machine is engineered for high precision, durability, and adaptability across various pipe sizes and materials. Let’s examine the key components and features:

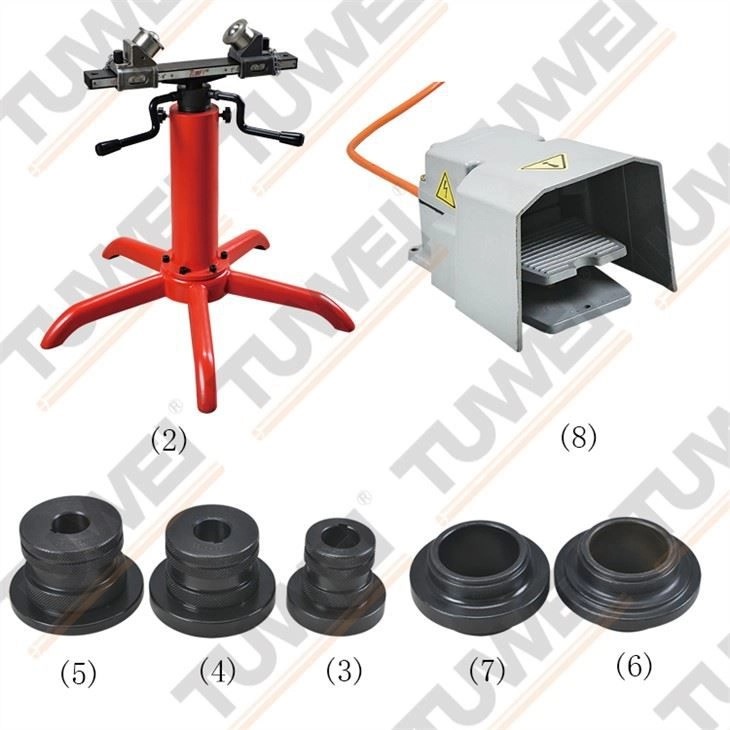

Grooving Roll & Drive Roll: These are responsible for forming the groove. The grooving roll exerts pressure, while the drive roll rotates the pipe.
Frame or Base: Provides stability during operation and typically houses the hydraulic or mechanical driving mechanism.
Hydraulic System: High-end models often incorporate hydraulics for enhanced pressure control and grooving accuracy.
Control Panel: Enables the operator to control speed, pressure, and positioning, ensuring consistency.
High Compatibility: Capable of working with ductile iron, carbon steel, and stainless steel pipes.
Adjustable Grooving Depth: Ensures compliance with standards such as AWWA C606.
Portability Options: Some models include wheeled bases or modular designs for on-site grooving.
Durability: Constructed from wear-resistant alloys and robust industrial components for long-term use.
In environments that demand quick, clean, and consistent pipe preparation, these features enable the Pipe Roll Grooving Machine to stand out as an essential industrial asset.
The versatility of the Pipe Roll Grooving Machine allows it to be used in a wide range of sectors. Below is a detailed breakdown of some primary applications:
One of the most common uses of pipe roll grooving machines is in fire sprinkler system installations. These systems often rely on grooved-end pipes to ensure rapid assembly, leak resistance, and flexibility for future modifications.
In HVAC (Heating, Ventilation, and Air Conditioning) systems, grooved piping allows for reduced vibration, thermal expansion accommodation, and easier repairs—all achievable through grooved connections formed by these machines.
Chemical processing plants, food & beverage factories, and refineries often require non-welded piping joints due to safety regulations or cleanliness standards. A Pipe Roll Grooving Machine enables such industries to meet stringent installation codes.
Municipal water systems benefit from roll grooved pipes that offer easy maintenance access, high pressure resistance, and quick replacement cycles—a critical factor in urban infrastructure projects.
To make an informed decision about the appropriate Pipe Roll Grooving Machine for your needs, understanding key technical parameters is essential. The table below outlines a standard configuration for a high-quality grooving machine.
| Specification | Typical Range / Value |
|---|---|
| Pipe Diameter Range | 2” – 24” (or customized) |
| Wall Thickness Capability | Up to 10mm (depending on model) |
| Grooving Speed | Approx. 20-40 sec/pipe |
| Power Supply | 220V/380V, 50Hz/60Hz |
| Drive Method | Hydraulic / Mechanical |
| Machine Weight | 150kg – 350kg |
| Control System | Manual / Semi-Automatic |
These parameters may vary slightly depending on the specific model or customer customization. However, the standard specifications offer a good baseline for assessing machine capability and integration into your workshop or site.
The adoption of roll grooving machines has increased significantly due to their efficiency and reliability. Here are some of the key benefits that highlight their value in modern construction and industrial practices.
Compared to traditional welding or threading, roll grooving is faster and requires less skilled labor. A single operator can handle the machine with minimal training, which significantly reduces man-hours on-site.
Welding poses fire hazards and produces fumes, while roll grooving is a cold process that eliminates these risks. There’s also no debris or oil residue, making it suitable for clean environments like food factories or hospitals.
Precision grooves ensure tight-fitting mechanical joints, which leads to improved system performance and reduced risk of leakage or failure—particularly important in high-pressure systems.
Whether you're working with small-diameter pipes or large-scale industrial lines, most Pipe Roll Grooving Machines can be adjusted to accommodate various sizes and materials, making them ideal for multi-project contractors.
A: Yes, high-quality Pipe Roll Grooving Machines are capable of grooving stainless steel pipes. However, it’s important to ensure that the machine is equipped with appropriate rollers to handle the harder material.
A: Roll grooving does not weaken the pipe’s structure because it is a cold-forming method. In many cases, the mechanical joint formed using grooves offers sufficient strength for medium- to high-pressure applications.
A: While the machine is user-friendly, basic operator training is recommended to ensure proper alignment, grooving depth accuracy, and safety procedures are followed.
A: The machine typically supports carbon steel, ductile iron, copper, and stainless steel pipes. Special configurations may be available for plastic-lined or coated pipes.
A: Regular maintenance, such as roller lubrication and inspection of the hydraulic system, ensures optimal performance. Most machines are built to be low-maintenance with periodic check-ups recommended every 500 operation hours.
For businesses that handle piping installations regularly, investing in a Pipe Roll Grooving Machine offers substantial long-term benefits. Not only does it accelerate installation timelines, but it also enhances the precision, safety, and reliability of pipe connections. Its adaptability across industries, minimal maintenance requirements, and high compatibility with various pipe sizes and materials make it a cost-effective tool for modern operations.
Whether you’re setting up fire suppression systems, assembling an HVAC network, or maintaining municipal water lines, the pipe roll grooving process is a dependable solution that ensures your pipework performs at the highest standard.
When selecting a machine, consider your required pipe range, material compatibility, control method, and available workshop space. Proper usage and regular maintenance will ensure that your investment pays off in both performance and durability.
