Using a Pipe Diameter Tape Measure Is a No-Brainer

In industrial piping systems, fluid transportation, and mechanical manufacturing, precision is not just a preference; it is a critical safety and operational requirement. Engineers, quality control inspectors, and field technicians work with various piping materials daily, including carbon steel, stainless steel, PVC, and HDPE, each requiring exact measurements for proper joining, welding, or grooving. Traditional calipers and standard linear measuring tapes often fall short when dealing with large-diameter pipes or confined job site spaces, leading to reading errors that can cause catastrophic joint failures or costly leaks. To solve this operational bottleneck, specialized diameter tapes have become an essential tool in modern piping fabrication.

A specialized pipe diameter tape measure, particularly a precision pipe groove tape, is a specialized tool engineered to convert circumferential measurements directly into linear diameter readings instantly. By utilizing the mathematical relationship between circumference and diameter, this tool allows operators to wrap the tape around a cylindrical object and immediately read the precise outer diameter or groove depth without performing manual mathematical calculations. This simple, highly efficient tool eliminates human error, standardizes measurement protocols across manufacturing teams, and significantly speeds up inspection workflows on the shop floor and in the field.

The following comprehensive guide will explore the technical mechanics, industrial applications, operational benefits, and critical selection criteria of diameter measurement tools in modern piping systems. By understanding how to properly utilize and maintain these precision instruments, industrial operations can maximize efficiency, ensure compliance with international piping standards, and significantly reduce material waste.

Content Structure and Section Summaries

What Is a Pipe Diameter Tape Measure

A pipe diameter tape measure is a highly specialized, flexible scale tool engineered to calculate the outer diameter or groove dimensions of cylindrical objects by wrapping around their outer circumference.

The fundamental operating principle of a precision pipe groove tape relies on the mathematical constant Pi. In standard geometry, the relationship between the circumference(C) of a perfect circle and its diameter (D) is defined by the formula:

When a technician uses a standard linear tape measure to check a pipe, they obtain the circumference. They must then manually divide that number by approximately 3.14159 to determine the actual outer diameter. This manual calculation introduces significant opportunities for rounding errors and administrative mistakes, especially in fast-paced fabrication shops.

A specialized diameter tape measure solves this problem by embedding the Pi factor directly into the graduation marks of the scale. The markings on the diameter side of the tape are pre-scaled, where each "inch" or "millimeter" representing diameter is physically printed at a distance equal to π times that unit. For example, the space between the 1-inch and 2-inch marks on the diameter scale is actually 3.14159 linear inches long. When the tape is wrapped tightly around a pipe, the alignment of the zero mark against the scaled graduation yields the true outer diameter immediately. This mechanism provides an instant, direct reading, bypassing all secondary calculations.

Modern manufacturing processes require these tools to feature dual-sided printing or specialized zones. One side of the tape typically measures standard linear circumference or standard diameter, while the reverse side or specific graduation zones are calibrated to measure critical groove dimensions. This dual functionality makes the tool indispensable for verifying that pipes have been prepped correctly for mechanical couplings. By providing real-time data on both the general outer diameter and specific structural grooves, this tool serves as the primary line of defense against out-of-tolerance pipe components before they are integrated into high-pressure industrial systems.

The Crucial Role of Groove Depth and Diameter in Piping

The physical outer diameter and precise groove depth of a pipe dictate the mechanical sealing efficiency, structural pressure capacity, and long-term safety of grooved piping networks.

In modern industrial fluid dynamics, grooved piping systems are widely utilized due to their ease of assembly, vibration dampening, and reliable structural performance. However, these systems rely entirely on strict dimensional compliance to maintain their integrity. A grooved joint consists of two pipe ends with concentric grooves rolled or cut into their outer surfaces, a resilient elastomeric gasket, and a mechanical coupling housing. If the outer diameter of the pipe or the depth of the groove deviates even slightly from engineering specifications, the coupling cannot engage correctly, leading to joint degradation or immediate failure under hydraulic pressure.

When processing large volumes of industrial piping, utilizing a specialized Victaulic pipe tape tracking system allows quality assurance teams to verify that every single groove complies with the required tolerance limits. If a groove is machined too deep, it reduces the wall thickness of the pipe, creating a localized stress concentration zone that can buckle or fracture under high system pressures or thermal expansion. Conversely, if the groove is too shallow, the mechanical coupling keys cannot fully seat into the groove. This prevents the gasket from achieving its designed compression, leading to chronic leaks, or worse, causing the joint to blow apart under pressure.

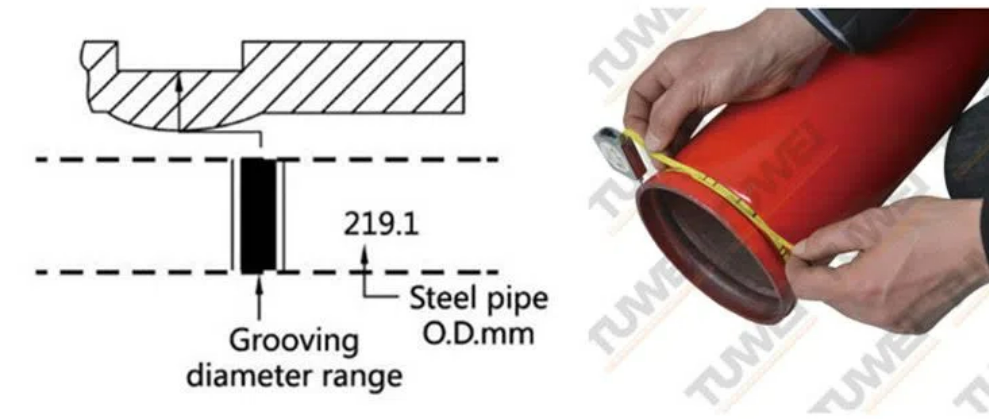

To maintain operational safety across chemical plants, HVAC systems, mining installations, and fire protection lines, strict adherence to dimension tables is mandatory. Technicians must monitor three distinct dimensions on every pipe end: the outer diameter of the pipe body, the groove diameter at the base of the indent, and the linear width of the groove itself. Regular checks with a high-quality grooved pipe diameter tape guarantee that these parameters remain within thousandths of an inch of specified tolerances, providing the statistical quality control required for high-risk industrial environments.

Key Advantages of Using a Precision Pipe Groove Tape

Using a precision diameter tape provides unmatched speed, eliminates mathematical human error, offers high portability, and ensures repeatable accuracy across various pipe materials.

1. Elimination of Mathematical Calculation Errors

Manual conversions from circumference to diameter are a frequent source of error in industrial environments. A technician working in cold, loud, or poorly lit conditions can easily miscalculate a decimal place or misread a standard conversion chart. By utilizing a specialized diameter scale that incorporates Pi directly into its markings, the tool completely removes the need for mental arithmetic or digital calculators. The operator simply reads the number indicated by the tape alignment, ensuring that the data recorded is the exact physical reality of the pipe structure.

2. Enhanced Field Portability and Accessibility

Unlike bulky mechanical vernier calipers or heavy micrometer sets, which require large protective cases and can be difficult to maneuver around tight pipeline configurations, a flexible diameter tape fits easily into a technician's pocket. This compact form factor is particularly advantageous when working on overhead pipe racks, inside underground trenches, or within complex marine engine rooms. The flexible blade can slide easily behind installed pipes with minimal clearance, allowing for accurate in-place inspections that would be impossible with rigid measuring instruments.

3. Comprehensive 360-Degree Average Measurement

Rigid calipers only measure a single linear axis across two opposing points on a cylinder. If a pipe is slightly out-of-round, oval, or deformed due to improper storage or transportation, a caliper reading will vary wildly depending on the angle of application, requiring multiple cross-measurements to find an average. A flexible pipe groove tape measure wraps entirely around the full 360-degree perimeter of the pipe. This inherent design automatically integrates any local ovality or surface irregularities into a single, highly accurate average diameter reading, which represents the true mating capacity of the pipe end.

4. High Material Versatility and Non-Destructive Application

Industrial piping networks consist of diverse materials ranging from hardened carbon steel to soft plastic alloys like HDPE and PVC. Rigid metal caliper jaws can easily scratch, gouge, or deform softer materials if over-tightened, compromising the structural surface finish required for pressurized seals. Precision diameter tapes feature smooth, precision-ground edges and balanced tension mechanisms that apply uniform, gentle radial pressure across the entire pipe circumference. This ensures accurate readings without causing surface damage or micro-abrasions to the pipe material.

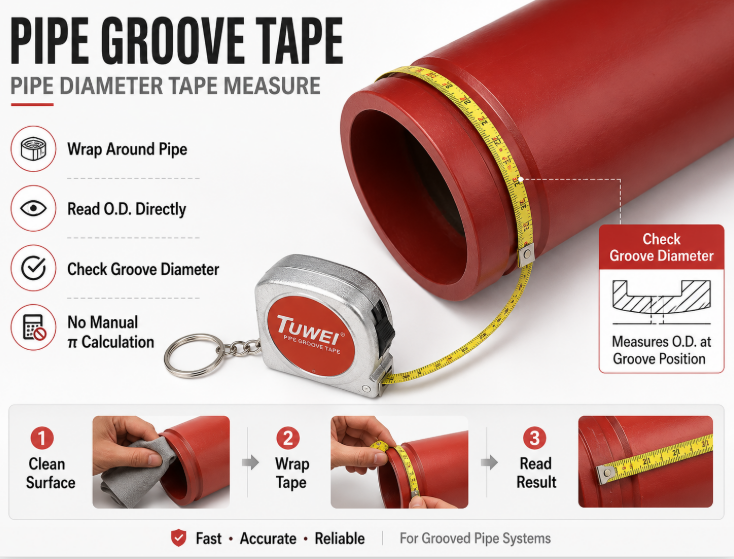

How to Properly Use a Diameter Tape for Accurate Results

Achieving highly accurate and repeatable results with a diameter tape requires systematic surface cleaning, precise orthogonal tape alignment, correct tension application, and careful parallax error elimination.

To perform a professional inspection using a pipe groove tape, the operator must first ensure that the target pipe surface is completely clean. Any accumulation of dirt, rust, industrial grease, scale, or protective lacquer coatings will add artificial thickness to the outer perimeter, skewing the circumference calculation. Use a wire brush or cleaning solvent to wipe down the inspection area until the bare metal or base plastic structure is exposed. This is especially vital inside cut or rolled grooves, where tiny metal shavings can log beneath the tape blade and cause inaccurate readings.

Once the surface is prepared, the operator wraps the flexible tape blade around the pipe, ensuring that the tape is oriented perfectly perpendicular to the longitudinal axis of the pipe. If the tape is wrapped at an angle, it creates an elliptical pathway rather than a true circular cross-section, resulting in an overestimation of the actual diameter. The tape blade must lie completely flat against the pipe surface, with no twists, kinks, or overlapping edges along its path. For grooved areas, the narrow section of the blade must seat fully into the bottom of the groove channel.

Applying the correct amount of physical tension is the next critical step. The operator must pull the tape taut around the cylinder to eliminate any micro-gaps or air pockets between the tape and the pipe wall. However, excessive pulling force must be avoided, as it can stretch the tape material over time or temporarily deform softer plastic piping. Once the tape is properly tensioned, align the embedded zero-index line with the graduated diameter scale. The operator must position their eyes directly perpendicular to the alignment point to eliminate parallax errors, which occur when reading the scale from an angle.

Selecting the Best Measuring Tool for Industrial Piping

Selecting the ideal diameter measuring tool requires assessing blade material composition, scale units, environmental exposure resistance, and specific industrial tolerance requirements.

When source-selecting a Victaulic pipe tape variant or standard diameter tape for a commercial tool inventory, material composition is the most critical consideration. Industrial-grade tapes manufactured from high-tensile spring steel offer excellent thermal stability and resistance to mechanical stretching. These steel tapes are often treated with specialized anti-corrosion clear coats or black oxide finishes to withstand the harsh chemicals, moisture, and abrasive dust common in fabrication shops and outdoor construction environments.

Another important factor is scale legibility and engraving quality. Cheaply manufactured tapes often feature painted-on markings that quickly rub off or fade under heavy contact with grease and industrial solvents. Premium options utilize laser-etched or photo-chemically engraved graduations that remain sharp and legible over years of field use. For international projects, choosing a dual-unit tape that displays metric millimeters on one edge and imperial fractional or decimal inches on the opposite edge eliminates manual conversion errors between different engineering blueprints.

Finally, consider the specific tolerance requirements of the piping application. High-pressure hydraulic lines and gas transmission infrastructure demand extremely tight tolerances, requiring a highly precise pipe groove tape certified to international accuracy standards. For low-pressure irrigation pipelines or general drainage infrastructure, utility-grade synthetic tapes may suffice. However, for specialized industrial mechanical systems, investing in a calibrated steel tape ensures long-term regulatory compliance and robust quality control.

Maintenance and Calibration of Industrial Diameter Tapes

Maintaining the long-term accuracy of precision diameter tapes requires regular chemical cleaning, controlled climate storage, and routine calibration tracking against certified master gauges.

A precision pipe groove tape is a calibrated metrology instrument and must be treated with care. After each use, especially in muddy outdoor jobsites or oily machine shops, the tape blade should be fully extended and wiped clean with a dry, lint-free microfiber cloth. If the blade has been exposed to corrosive chemicals or saltwater, it should be gently cleaned with a mild isopropyl alcohol solution to dissolve contaminants, then thoroughly dried. Apply a very thin layer of high-grade light machine oil to steel blades before retraction to prevent surface oxidation and rust formulation during storage.

Physical damage is the leading cause of premature tool failure. Workers must avoid stepping on extended tapes, dropping heavy tools onto the blade, or bending the tape at sharp angles, as these actions create permanent kinks or micro-fractures in the steel. A kinked tape will no longer lie perfectly flat against a pipe's circumference, introducing air gaps that compromise measurement accuracy. When retracting spring-loaded or manual rewind tapes, control the speed to prevent the blade from whipping violently, which can damage the end-hook or lead to user injury.

Regular calibration checks are essential to ensure the tool remains within its certified accuracy tolerances. Over months of field deployment, constant pulling tension and ambient thermal cycles can cause subtle material drift or wear on the zero-index line. Quality control managers should implement a monthly calibration schedule, verifying the tape against a certified master cylindrical gauge of known, unvarying diameter in a temperature-controlled laboratory setting. Any tape that shows structural stretching, illegible markings, or deviations beyond specified tolerances must be removed from service immediately to protect the integrity of the fabrication workflow.

Strategic Summary of Dimensional Control

Maintaining rigorous dimensional tolerances in industrial piping networks is a non-negotiable requirement for operational safety, structural reliability, and efficiency. By replacing error-prone manual calculations and bulky mechanical calipers with specialized diameter tapes, industrial enterprises can streamline quality control workflows across their fabrication teams. Whether verifying basic outer pipe diameters or checking critical grooves on high-pressure lines, these simple yet precise tools provide direct, reliable data with every measurement. Investing in high-tensile steel construction, committing to systematic user training, and enforcing strict maintenance protocols ensures that your piping projects remain completely leak-free, regulatory compliant, and highly cost-effective over the long term.
