The best tape measure for pipe fittings is a specialized diameter tape measure, specifically a Pipe Groove Tape, which converts the circumferential measurement of a pipe directly into an accurate outer diameter or groove depth reading with a single wrap.
To achieve flawless alignment and secure coupling, mechanical contractors and field engineers must understand the technical differences between conventional linear tapes and diameter-based measuring instruments. The following sections break down the essential tool categories, selection criteria, and operational best practices for industrial piping layouts.
Section | Summary |
Understanding Pipe Measurement Tools | An overview of why specialized diameter tapes are essential for accurate industrial pipe fitting and inspection. |
The Mechanics of a Pipe Groove Tape | Explanation of how pi-tapes convert circumference to diameter and their role in verifying standard groove specifications. |
Critical Features of Industrial Diameter Tapes | A detailed look at material durability, scale readability, and accuracy certifications required for heavy-duty field use. |
How to Measure Grooved Pipes Accurately | A step-by-step technical guide on using specialized tapes to check groove diameters and prevent joint failures. |
Comparing Linear Tapes and Diameter Tapes | A structural comparison highlighting why standard tape measures are inadequate for technical pipe fitting applications. |
Applications of Victaulic Pipe Tape Standards | Exploring how diameter tapes are used to satisfy rigorous mechanical coupling standards across diverse industrial sectors. |
Maintenance Tips for Precision Measuring Tapes | Practical advice on cleaning, calibration tracking, and storage to preserve the long-term accuracy of your tools. |
Specialized diameter tape measures are the primary instruments used to verify the external dimensions of cylindrical piping before joining. Using a dedicated diameter tape ensures that technicians can read the exact outer diameter of a pipe instantly without performing manual mathematical conversions from the circumference.
In high-pressure fluid systems, even a millimeter of variance in a pipe outer diameter can compromise the seal of a mechanical coupling. Standard tape measures are designed for linear lengths, which makes wrapping them around a cylinder prone to slipping, twisting, and reading errors. Industrial pipe fitters rely on flexible, high-tensile steel tapes that hug the outer surface of the pipe smoothly, providing an immediate and highly accurate representation of the true outer diameter.
Furthermore, when dealing with modern mechanical piping systems, components must undergo strict quality control checks before installation. Field workers use these specialized precision tools to perform rapid, repeatable audits on-site. By integrating a reliable diameter tape into the daily workflow, processing plants, construction crews, and fabrication shops can drastically decrease material waste and ensure full compliance with engineering blueprints.
A specialized Pipe Groove Tape operates on the mathematical relationship between the circumference of a circle and its diameter, utilizing a pre-converted scale to display direct diameter values. This tool allows operators to measure both the standard outer diameter and the critical groove dimensions of a pipe simultaneously, eliminating the need to calculate dimensions manually.

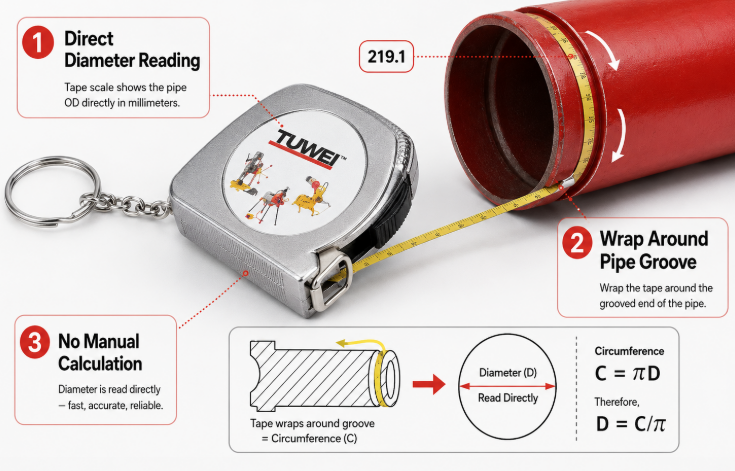

The design of a relies on the formula where circumference equals diameter multiplied by pi. The engineering behind a high-quality Pipe Groove Tape involves printing a scale that is expanded by a factor of 3.14159. When the tape is wrapped around the perimeter of a pipe, the alignment line points directly to the correct diameter value on the face of the blade, saving time and preventing calculation mistakes in loud or fast-paced fabrication environments.
The primary benefit of this tool is its dual-scale layout. One side of the tape often features a standard linear scale for length measurements, while the primary side features the converted diameter scale. This allows a technician to switch between measuring pipe length and checking diameter tolerances without changing tools.
For modern mechanical joints, the depth and width of the structural groove must fit within rigid engineering tolerances. A high-accuracy tape sits perfectly inside the groove track, allowing inspectors to confirm that the groove diameter matches the coupling manufacturer's exact specifications before the housing is bolted down.
Manual calculations performed on a busy job site frequently lead to rounding errors. By providing a direct readout, the tool eliminates mental math, ensuring that every technician on the crew achieves identical, standardized measurements across the entire production line.
Industrial-grade diameter tape measures must possess exceptional material integrity, clear etched graduations, and reliable retraction mechanisms to withstand harsh field environments. The best tape measures for pipe fittings feature heavy-duty spring-steel construction, corrosion-resistant coatings, and high-contrast markings that remain legible under low-light workshop conditions.
When evaluating tools for commercial use, the environmental conditions of the worksite must be considered. Chemical plants, oil rigs, and outdoor construction sites expose tools to moisture, abrasive dust, and extreme temperatures. A flimsy, consumer-grade plastic or low-grade steel tape will stretch, rust, or lose its markings within weeks, leading to inaccurate readings that ruin expensive piping assets.
To ensure longevity, leading industrial tape manufacturers utilize specialized hardened steel or stainless steel alloys that resist thermal expansion. The markings are often photo-chemically etched or precision-printed and coated with a protective polyurethane layer. This level of manufacturing quality ensures that the tape retains its precise calibration over thousands of measurement cycles.
High-tensile stainless steel is the preferred choice for industrial environments. It provides the necessary flexibility to wrap around tight pipe curves while resisting permanent bending, stretching, or kinking when pulled taut by the technician.
Workspaces like trenches, mechanical rooms, and industrial warehouses often suffer from poor lighting. Tapes featuring bold black and red lettering against a high-contrast white or yellow background allow inspectors to identify fractions of a millimeter quickly and accurately.
For projects governing public infrastructure, chemical processing, or high-pressure steam, measurements must be traceable to national standards. Premium diameter tapes are calibrated in temperature-controlled laboratories to guarantee accuracy tolerances up to hundredths of a millimeter.
Achieving a precise reading with a diameter tape requires a standardized physical technique to prevent misalignment and tape slippage. To measure a grooved pipe correctly, the technician must clean the pipe surface, wrap the tape perpendicular to the pipe axis, apply uniform tension, and read the alignment mark directly.
Before attempting any measurement, the exterior of the pipe must be free of rust, scale, dirt, or heavy burrs. Any debris trapped beneath the tape will artificially increase the circumference reading, leading to an incorrect diameter calculation. Technicians should use a wire brush or emery cloth to clean the inspection zone before applying the tape.
Once the surface is clean, the tape must be wrapped flat against the pipe. If the tape is angled or twisted, the resulting measurement will reflect an elliptical path rather than a true circular cross-section, yielding an over-sized reading. Keeping the tape perfectly perpendicular to the longitudinal axis of the pipe is the most critical step for field accuracy.
Step 1: Clean the pipe surface thoroughly with a wire brush.
Step 2: Wrap the diameter tape flat around the pipe, avoiding any twists.
Step 3: Keep the tape perfectly perpendicular to the pipe's length.
Step 4: Pull the tape tight to eliminate gaps between the steel and the pipe.
Step 5: Read the final diameter value where the zero index line overlaps the scale.
When inspecting grooved ends, the tape must seat entirely within the recessed groove. Utilizing a specialized grooved pipe diameter tape ensures that the blade width matches standard industrial groove profiles perfectly, preventing the tape from riding up on the groove shoulders.
Standard linear tape measures and specialized diameter tapes serve entirely different geometric purposes on a construction site. While linear tapes excel at determining straight-line distances and pipe layouts, diameter tapes are mathematically optimized to capture the exact outer dimensions of cylindrical bodies without distortion.
Feature | Standard Linear Tape Measure | Specialized Diameter Tape (Pi-Tape) |
Primary Scale | Linear units (Inches / Millimeters) | Converted Pi Scale ($C / \pi = D$) |
Blade Flexibility | Stiff, cupped blade designed to stand out straight | Flat, ultra-flexible thin steel designed to wrap smoothly |
Measurement Target | Straight lengths, distances, wall framing | External pipe diameter, groove depth, cylinder roundness |
Error Potential | High when wrapping; prone to slipping and twisting | Low; seats flat against the metal surface |
Calculation Needed | Manual math required (D = C / 3.1416) | Zero manual math; direct readout |
Relying on a standard linear tape to determine diameter introduces significant margin for error. A standard tape blade is cupped to allow it to extend into the air without collapsing. This curved profile prevents it from sitting flat against a cylindrical pipe wall, creating subtle gaps that distort the true circumferential measurement. In contrast, the completely flat profile of a diameter tape ensures absolute contact with the pipe surface across the entire arc of the measurement.
Mechanical grooved couplings require exact compliance with standardized dimensions to perform safely under high pressure. Using a certified Victaulic Pipe Tape standard ensures that grooved pipe ends are fabricated within the precise tolerances mandated by mechanical coupling manufacturers.
In modern commercial HVAC, fire protection, and industrial processing plants, grooved piping systems have largely replaced traditional welding and threading. These systems rely on a rubber gasket compressed by a metal housing that locks directly into a groove cut or rolled into the pipe end. If the groove is too deep, the pipe wall is weakened; if it is too shallow, the coupling cannot engage fully, risking catastrophic joint separation under operational pressures.
To mitigate these risks, quality control protocols require systematic measurement using a Victaulic Pipe Tape configuration. Field operators utilize these specialized tools at regular intervals during the grooving process to calibrate their roll-grooving machinery and verify that production output matches engineering requirements.
Fire protection systems demand absolute reliability. Inspectors utilize diameter tapes to verify that every grooved mainline pipe and branch line fitting complies with fire code pressure ratings before the system is hydrostatically tested.
Water infrastructure utilizes large-diameter piping that undergoes constant pressure fluctuations. Precision measurement tapes allow field crews to monitor pipe roundness and groove consistency across wide thermal ranges, preventing long-term joint fatigue.
Abrasive materials wear down piping quickly, requiring frequent component replacement. Maintenance teams use specialized diameter tapes to quickly check replacement pipe dimensions on-site, ensuring rapid swap-outs that minimize facility downtime.
To protect the accuracy of an industrial diameter tape, field crews must establish a regular cleaning and inspection routine. Proper maintenance involves wiping the tape clean after every use, storing it in a moisture-free environment, and verifying its accuracy against a known calibration standard periodically.
Steel tapes used around pipe grooving machinery frequently come into contact with cutting oils, metal shavings, and water. If left on the tape blade, these contaminants can corrode the protective finish and obscure the printed numbers. At the end of every shift, technicians should pull the tape out fully and wipe it down with a clean, dry microfiber cloth. A light application of low-viscosity tool oil can be used to prevent rust in humid climates.
Furthermore, spring-loaded retraction mechanisms must be handled with care. Allowing a steel tape to snap back into its housing at full speed can damage the delicate leading edge hook or cause internal kinks that ruin the tape’s calibration. Controlling the retraction speed manually extends the operational lifespan of the internal spring mechanism.
A tape blade with a permanent kink will no longer wrap perfectly flat around a pipe cylinder. Inspectors must check the tape daily for structural damage, as any deformity will invalidate the tool's precision accuracy.
When working in chemical plants or oil refineries, exposure to corrosive solvents must be managed. If the tape is exposed to harsh chemicals, it must be washed immediately with clean water and thoroughly dried to protect the etched scale markings.
In certified B2B operations, measuring tools should be assigned tracking serial numbers. Recording calibration dates and comparing field tapes against a laboratory master gauge ensures that worn or stretched tapes are removed from service before causing installation errors.
