2"-12" PIPE CUTTER (TWQ-IIIA)
2"-12" Pipe Cutter TWQ-IIIA is capable of cutting steel pipes with outer diameter from 2" (60mm) to 12" (325mm), maximum wall thickness 10mm. It easily square cuts the pipe without sparks or open flame. It’s perfect for safety operation at jobsite or in workshop.
PRODUCT FEATURES
● No harsh noise.
● No sparks and open flame during cutting process.
● Square cut with minimal burr.
● Wheels offer easy transport.
PRODUCT SPECIFICATION
● Model No.: TWQ-IIIA
● Standard Capacity：
Be capable of cutting 2”-12” Schedule 20, Schedule 40 steel pipes and galvanized pipes.
● Motor Parameter：
Phase: Single phase/Three phase.
Voltage: 220V/230V/240V/380V/440V…
Frequency: 50Hz/60Hz.
Be supplied in various parameter to meet different power supply of different countries and regions.
Operating Speed：23RPM.

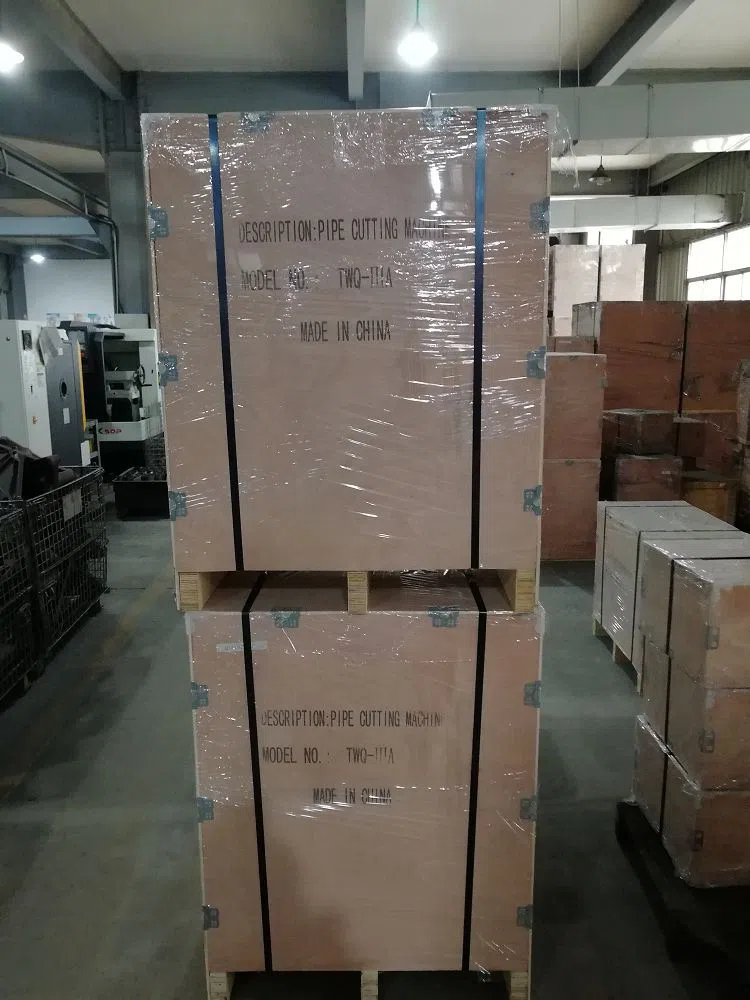

● Packing Details:
Wooden Case 780mmx700mmx920mm.
Gross Weight:143kg.
PRODUCT OPERATION

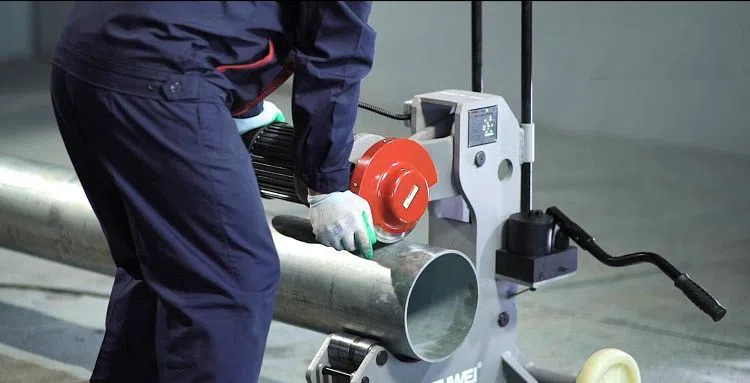

Place pipe on machine and pipe stand.

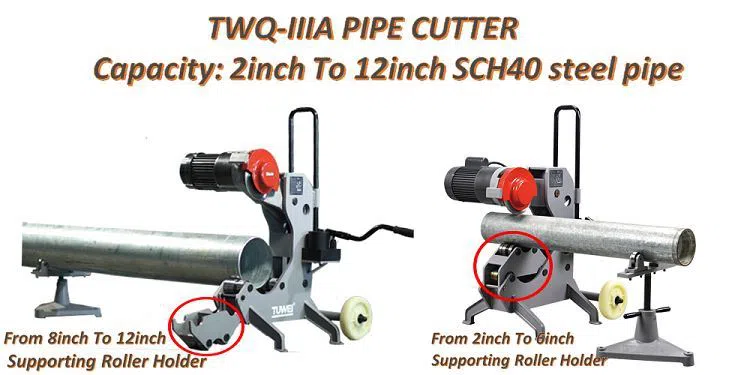

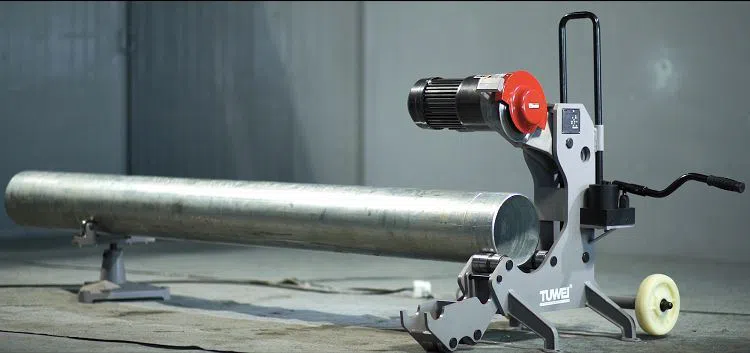

Make sure the machine and pipe stand are on flat, level ground. Place the cut end of the pipe on the machine short wheel or long wheel (2”-6” pipes on short wheel (see Fig.1); and 8”-12” pipes on long wheel (see Fig.2)), and the other end of pipe on the pipe stand. Adjust the height of the pipe stand to keep both ends of the pipe horizontal. Make sure the pipe is resting squarely on the machine short wheel or long wheel.
Press the handle of rock arm to lower cutting blade close to the pipe, then press the pump handle to utilize the hydraulic pump to advance the cutting blade until it touches the pipe.

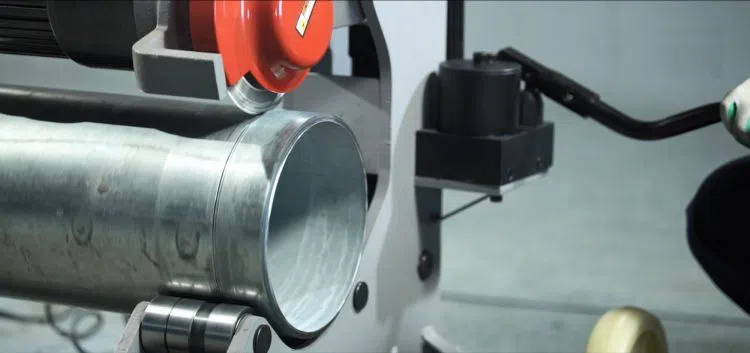

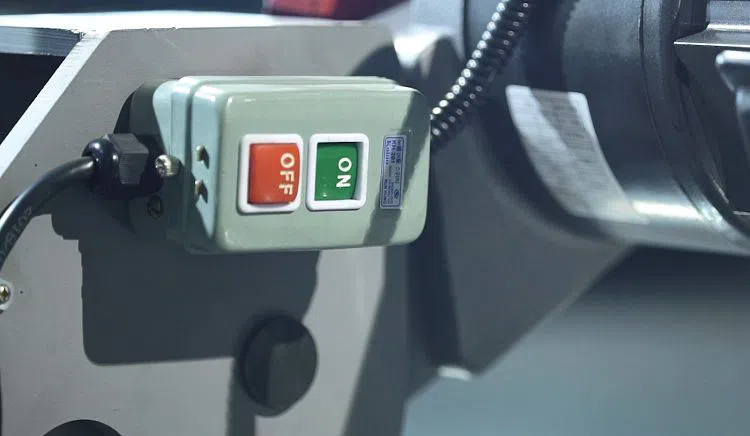

Turn on the ON/OFF switch to get the cutting blade rotated. Press handle of the hydraulic pump to start cutting. Allow the pipe to rotate for one or two revolutions before pressing the handle of hydraulic pump again. (Pressing too aggressively may distort pipe or damage cutting blade).
Stop pressing when the pipe is going to be cut off. Leave the pipe to rotate for several revolutions till it’s cut off completely.
PRODUCT TRANSPORTING

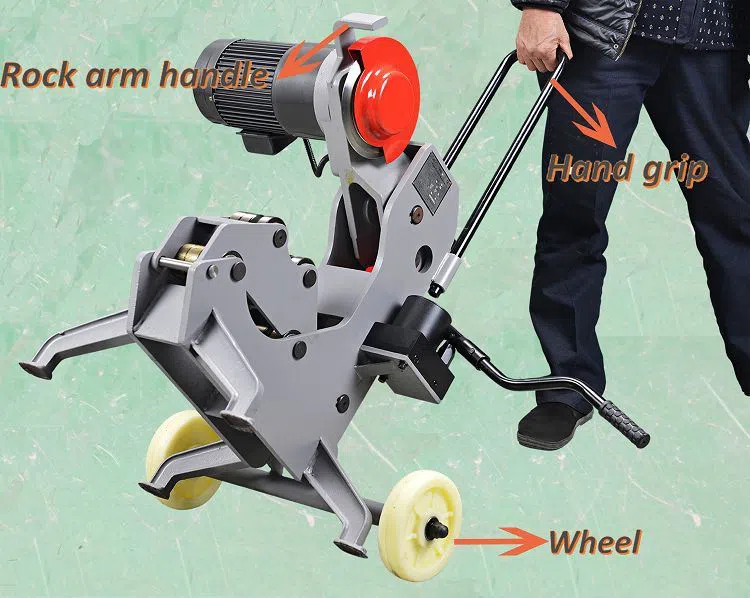

The machine is designed with a hand grip at the top rear and two wheels at the bottom rear of the frame for one-man transporting. Do not use the rock arm handle for any transporting as it may cause personal injury or damage to the hydraulic cylinder.
OUR SERVICE
The "Maintenance" and "Troubleshooting" on User's Manual covers most service needs of this machine.
Any problems of the operation, malfunction or requirements of quick-wear parts, pls contact TUWEI sales team as below for contact information of nearest distributor/service center or direct service from TUWEI.
Company Name: ZHEJIANG VICTAULIC-TUWEI PIPING EQUIPMENT CO., LTD
Address: No. 22 Beiyuan Avenue, Beicheng Development Zone, Huangyan 318020,Taizhou, Zhejiang Province, China
Tel: 0086-576-84715288
E-mail: info@cntuwei.com / sales@cntuwei.com
FAQ
Q1: How long is the delivery time?
A1: Under normal conditions, products are ready for shipment within 20 working days upon receipt of deposit or payment.
Q2: How do I choose the model of machine?
A2: First, Please offer us the size of the steel pipe. We will recommend the model of pipe cutting machine.
Q3: How can I know the status of my order?
A3: We will send you photos and videos of your order at different stage in time and keep you
informed of the latest information.
Q4: How can I know your machine works well?
A4: Before delivery, we shall test the machine working condition for you.
