2"-12" PIPE CUTTING MACHINE(TWQ-IIIA)
TWQ-IIIA pipe cutting machine is a hydraulically- powered pipe cutting machine designed to quickly and cleanly cut Φ2"- Φ 12" (60mm-325mm) Schedule 40/Schedule 20 seamless steel pipes and galvanized pipes. It’s an ideal tool for construction industry and pipeline construction sectors.
PRODUCT FEATURES

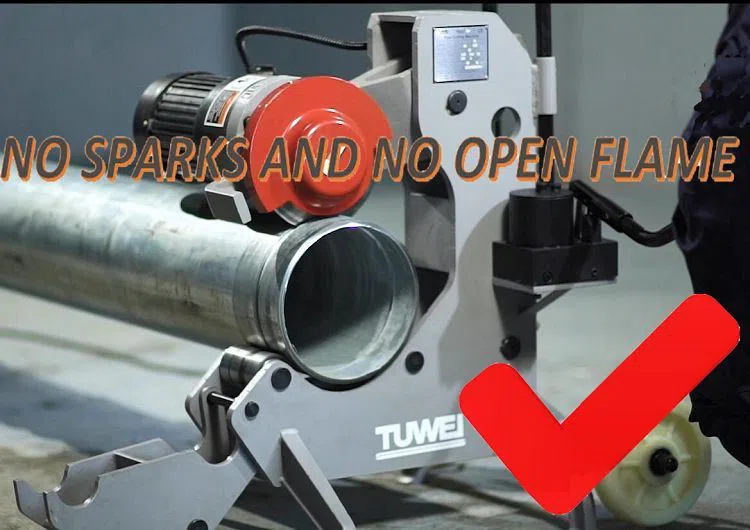

● No sparks or open flame during cutting process

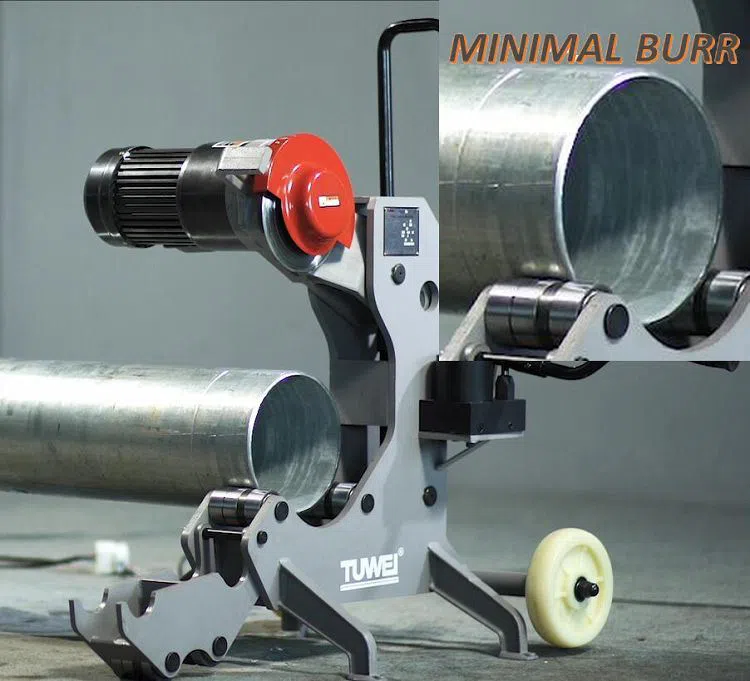

● Square cut with minimal burr

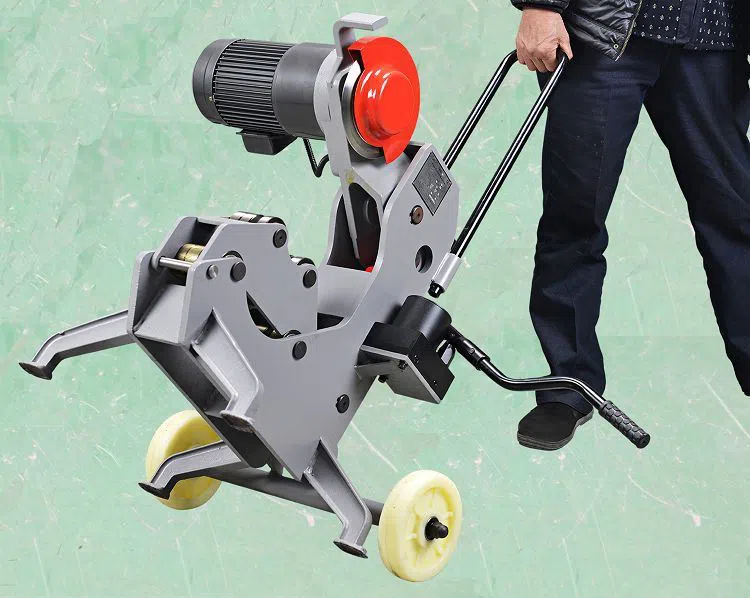

● Wheels offer easy transport.
PRODUCT SPECIFICATION
● Model No.: TWQ-IIIA
● Capacity
Standard: Capable of square cutting 2"-12" Schedule 20, Schedule 40 carbon steel pipes with maximum all thickness of 10mm.
Extended: Capable of square cutting 2"-12" thin wall stainless steel pipes with additional HSS cutting blade.
● Motor Parameter
Be supplied in various parameter according to meet different power supply of different countries and regions.
● Packing Details:
Gross Weight:143kg
Wooden Case 72cmx69cmx97cm
● Technical Parameter
Stroke of Oil Cylinder: | 90mm |
Capacity of Oil Tank: | 350ml |
Cutter Force: | 7850kg |
Operating Speed: | 23rpm |

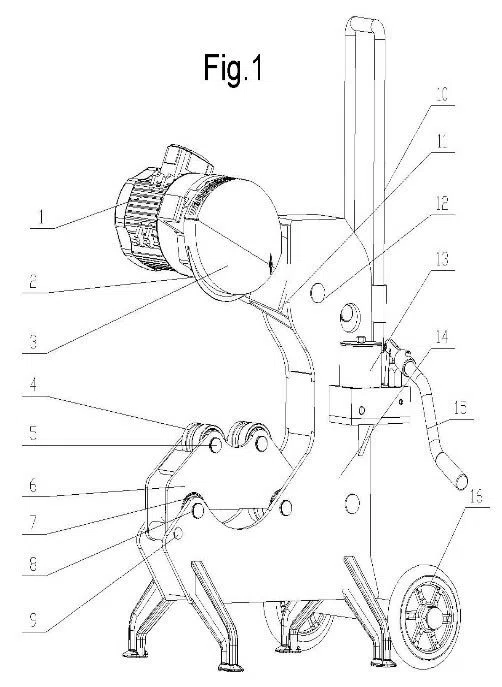

● Major Parts
No. | Description | Quantity |
1 | Speed Reduction Motor | One (1) |
2 | Cutting Blade | One (1) |
3 | Safety Cover | One (1) |
4 | Short Wheel | Two (2) |
5 | Short Wheel Axis | Two (2) |
6 | Tugboat Block | One (1) |
7 | Long Wheel | Two (2) |
8 | Long Wheel Axis | Two (2) |
9 | Axis Pin | One (1) |
10 | Frame Hand | One (1) |
11 | Rocker Arm | One (1) |
12 | Long Axis | One (1) |
13 | Oil Pump | One (1) |
14 | Frame | One (1) |
15 | Handle of Oil Pump | One (1) |
16 | Wheel | Two (2) |
PRECAUTIONS
● Familiar yourself with structure of the pipe cutting machine, functions of various handles as well as the driving and lubrication system through reading the User’s Manual prior to operation.
● Before starting the machine, add oil as instructed in the Manual, check whether the hydraulic cylinder has been filled with oil (20# oil in the summer and 10 # oil in the winter) and whether the rated voltage and frequency of the machine coinciding with the power supply.
● Earthing and fuse are required in the electric system.
● Never run the machine is overload.
PRODUCT MAINTENANCE
● Check whether the moving units and the machine can work normally or not.
● Check whether the hydraulic oil is sufficient. If not, fill it.
● After each use, clean the working surface and coat it with anti-rust oil.
● Add lubrication grease to all the joints of moving units.
● Use hydraulic oil of proper brand number as instructed in the Manual. Remove all the dusts near the filler aperture before adding oil.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer specialized in pipe tools, and we can ensure the quality of products we manufactured.
Q2: Do you have stock? If not, how long is the production time?
A2: We do not have stock. We produce machines as per the purchase order and the production time is around 15days-20days upon receipt of deposit.
Q3: How to order?
A3: Tell us the Items model and quantity you order or send us your purchase order. We will make the Proforma Invoice for you to check and confirm. Production will be arranged after we get your deposit.
