2"-8" PIPE CUTTER(TWQ-VA)
2"-8" Pipe Cutter TWQ-VA cuts Φ2" (60mm) to Φ8" (219mm) Schedule20 and Schedule 40 steel pipes and galvanized pipes at the building site or in the workshop. Powered by reduction motor, the cutting blade is rotating, and driven by force of hydraulic to feed into the pipe to cut the pipe with no spark nor burrs.
PRODUCT SPECIFICATION
● Model No.: TWQ-VA
● Capacity:
Be capable of squarely cutting Φ2"-Φ8" Schedule 20, Schedule 40 steel pipes and galvanized pipes.
Be capable of squarely cutting Φ2"-Φ8" thin wall stainless steel pipes with optional HSS cutting blade. Contact TUWEI sales team to purchase HSS cutting blade separately.
● Motor Parameter:
Single phase/Three phase, 220V/230V/240V/380V/440V, 50Hz/60Hz
Be supplied in various parameter to meet different power supply of different countries and regions.
● Packing Details:

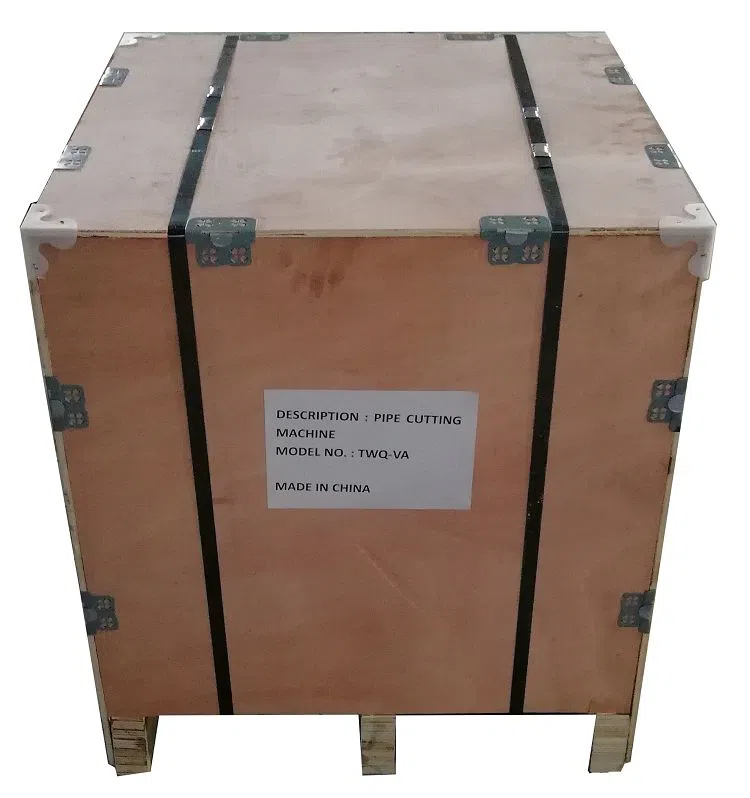

● Wooden Case :640mm x 600mm x 710mm
● Weight:70kg Net/87kg Gross
● Technical Parameter
Maximum Wall Thickness of Pipe | 6mm |
Stroke of Oil Cylinder: | 100mm |
Capacity of Oil Tank: | 350ml |
Cutter Force: | 5880kg |
Operating Speed: | 23rpm |

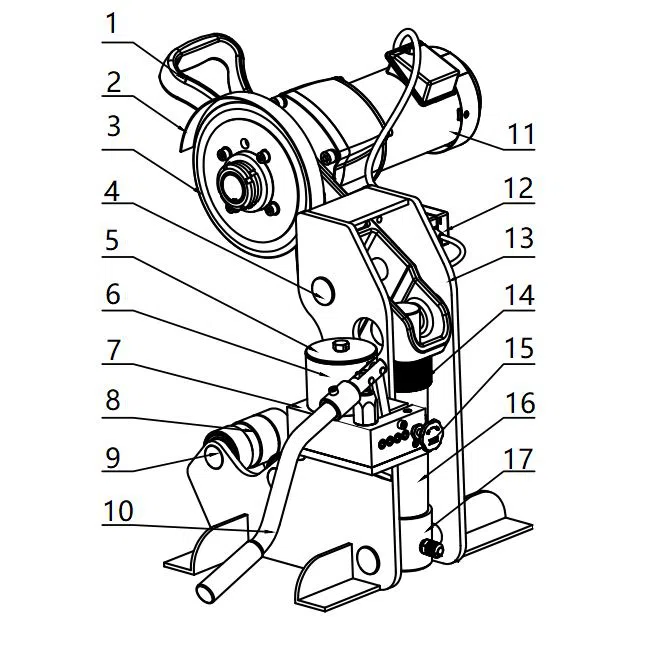

PRODUCT MAJOR PARTS
No. | Description | Quantity |
1 | Rocker Arm | One (1) |
2 | Safety Cover | One (1) |
3 | Cutting Blade | One (1) |
4 | Long Axle | One (1) |
5 | Cover of Oil Box | One (1) |
6 | Oil Box | One (1) |
7 | Pump Body | One (1) |
8 | Roller | Three (3) |
9 | Axle for Roller | Three (3) |
10 | Handle of Oil Pump | One (1) |
11 | Reduction Motor | One (1) |
12 | ON/OFF Switch | One (1) |
13 | Frame | One (1) |
14 | Oil Cylinder Nut | One (1) |
15 | Relief Valve | One (1) |
16 | Oil Cylinder | One (1) |
17 | Oil Cylinder Base | One (1) |
PRODUCT DETAILS
● Frame steel plate has thickness up to 12mm
● High concentricity, accurate assembly
● Various motor parameters and plugs provided according to customer’s requirements.

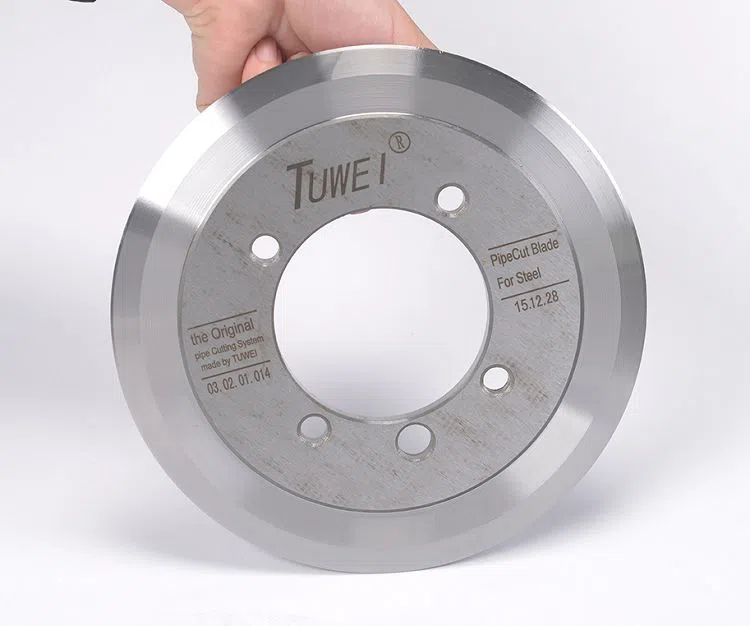

● One alloy cutting blade as standard included spare parts, applied with anti-rust oil prior to delivery.
● Specially designed and hardened cutting blade easily cuts pipes and has long service life.

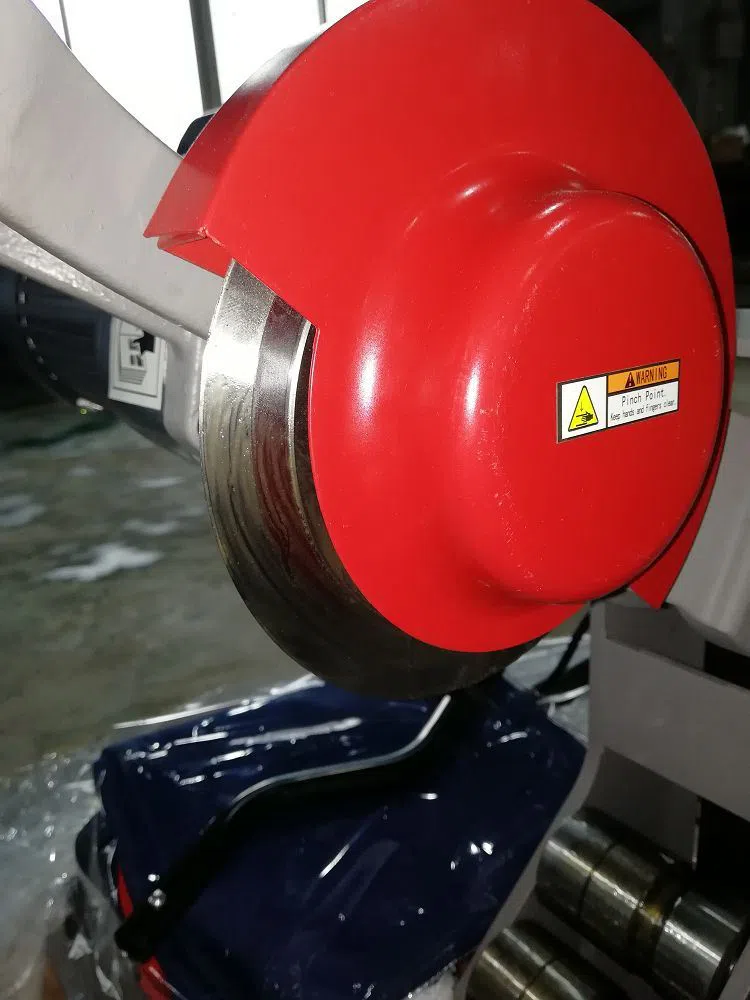

● Cutting blade guard protects blade during transportation and prevents people from accidentally contacting the cutting blade.

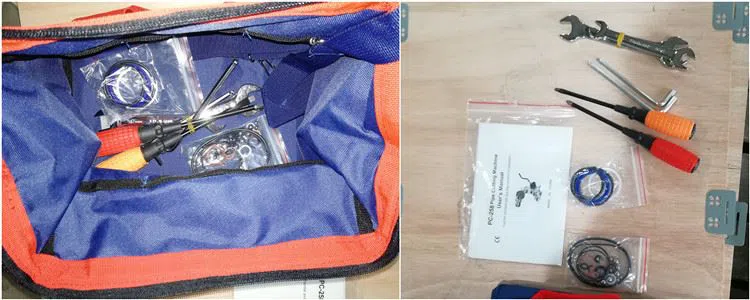

● Each new machine comes with the whole set of tools included in one tool bag. See tools list as below.
Description | Quantity |
Oil Pump Repair Kit/Sealing Ring Set | One (1) |
Straight Screwdriver | Two (2) |
Allen Wrench S5 | One (1) |
Allen Wrench S6 | One (1) |
Open Spanner 14-17 | One (1) |
Open Spanner 19-22 | One (1) |

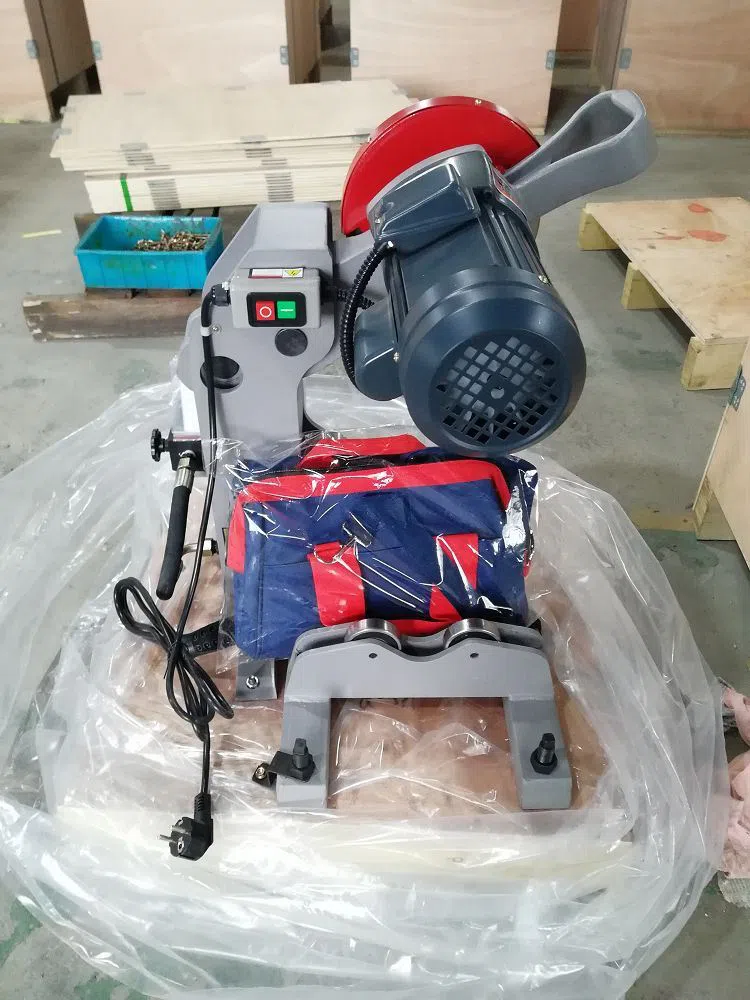

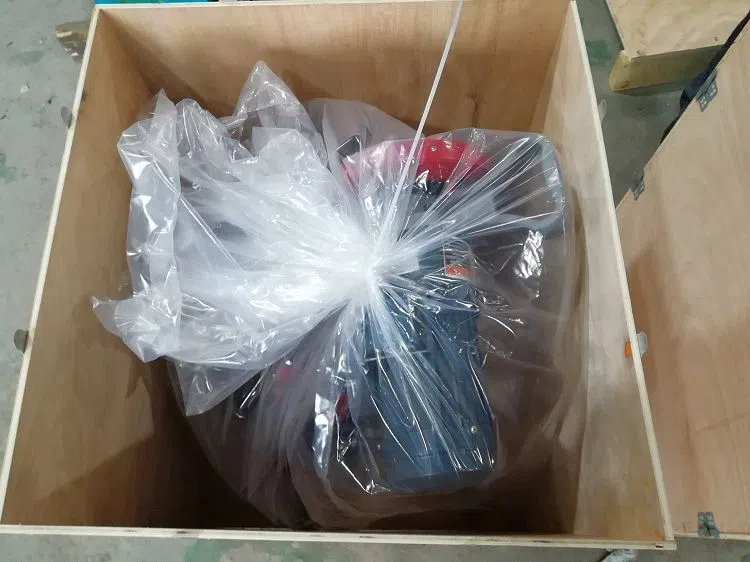

● Well packed: each new machine packed with a plastic bag and an export standard wooden case. Also desiccant included in the plastic to reduce moisture during transportation or temporary storage period.
● The optional HSS cutting blade is available for cutting stainless steel pipes.
Note: Using alloy cutting blade to cut any stainless steel pipes may damage the blade or severely shorten its service life.
Notice: Be sure to read all instructions and notice in User’s manual, familiar yourself with function of each part and operation of this machine prior to using it. Failure to do so may cause damage to the machine or serious personal injury.
