3/8"-2" PIPE CUTTING MACHINE (TWQ-VIA)
3/8"-2" Pipe Cutting Machine TWQ-VIA is designed for cutting carbon steel pipes and galvanized pipes with outer diameter of 3/8" (16mm) - 2" (60mm) and maximum wall thickness of 4mm. It produces a clean, square cut with no sparks, open flame or abrasive material.
PRODUCT FEATURES
● No harsh noise

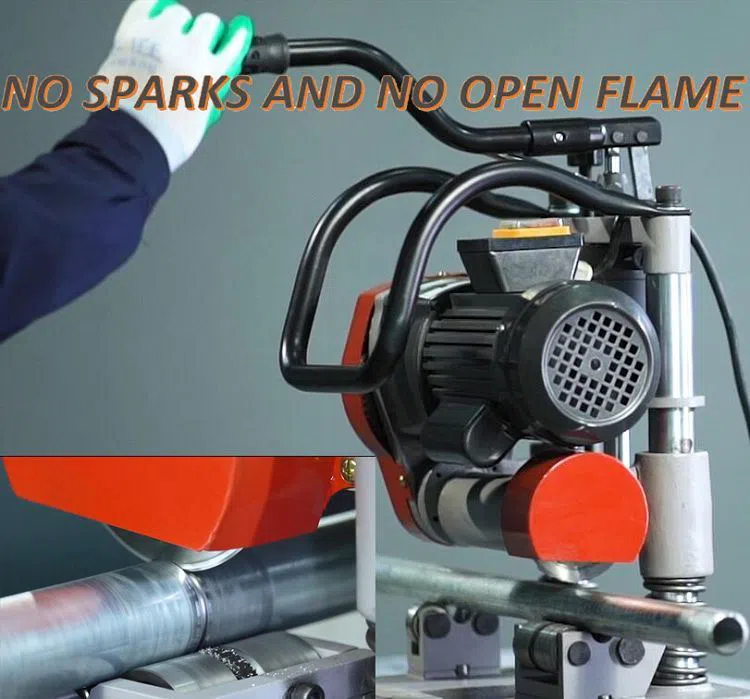

● No sparks, no open flame during cutting process
● Produce clean and square cut with minimal burrs
PRODUCT SPECIFICATION
● Model No.: TWQ-VIA
● Capacity.:
Be capable of squarely cutting Φ3/8"-Φ2" Schedule 20, Schedule 40 steel pipes and galvanized pipes with wall thickness up to 4mm.
● Motor Parameter:
- Phase: Single phase/Three phase.
- Voltage: 220V/230V/240V/380V/440V.
- Frequency: 50Hz/60Hz.
Be supplied in various parameter to meet different power supply of different countries and regions.
● Packing Details
- Wooden Case 330mm x 370mm x 660mm
- Weight:43kg Net/55kg Gross
● Technical Parameter
Maximum Wall Thickness of Pipe | 4mm |
Stroke of Oil Cylinder: | 60mm |
Capacity of Oil Tank: | 85ml |
Pressure of Oil Cylinder: | 37Mpa |
Operating Speed: | 23rpm |
PRODUCT MAJOR PARTS
No. | Description | Quantity |
1 | Pump Handle | One (1) |
2 | Relief Handle | One (1) |
3 | ON/OFF Switch | One (1) |
4 | Limit Screw | One (1) |
5 | Filler Plug | One (1) |
6 | Safety Valve | One (1) |
7 | Oil Cylinder | One (1) |
8 | Guide Post | Two (2) |
9 | Link Rack | Two (2) |
10 | Short Roller Seat | One (1) |
11 | Spring | One (1) |
12 | Base | One (1) |
13 | Long Roller Seat | One (1) |
14 | Saw Blade | One (1) |
15 | Cutting Blade | One (1) |
16 | Blade Shield | One (1) |
17 | Release Plug | One (1) |
18 | Reduction Motor | One (1) |
19 | Protective Handle | One (1) |
PRODUCT SPECIAL DESIGN

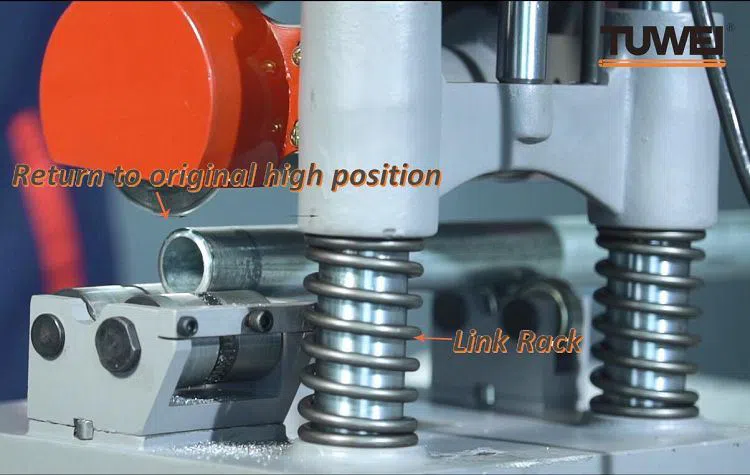

Relief Handle
After the pipe has been cut off, press the Relief Handle to let the cutting blade returns to its original high position together with the link rack.

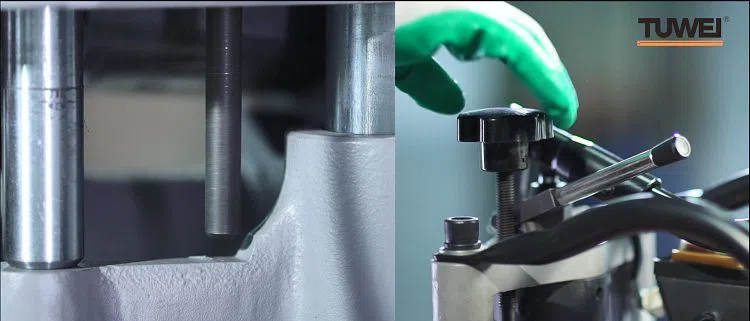

Limit Screw
During the operation, you may vary the position of Limit Screw depending on the diameter of pipe so as to obtain the preferred position of stroke of link rack and cutting blade, resulting in higher cutting performance.
Notice
Be sure to read all instructions and notice in User’s manual, familiar yourself with function of each part and operation of this machine prior to using it. Failure to do so may cause damage to the machine or serious personal injury.
PRODUCT DELIVER AND SHIPPING
OUR SERVICE

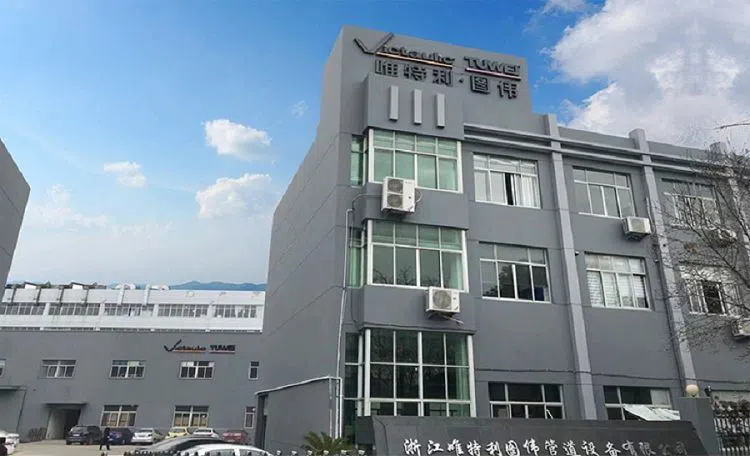

Our factory TUWEI joint venture with Victaulic, one American famous company who is grooved coupling and fitting manufacturer, we have developed our laboratory, to develop new products and do as many tests as we can before new products launch. Now, our new company name is ZHEJIANG VICTAULIC-TUWEI PIPING EQUIPMENT CO.,LTD.
The "Maintenance" and "Troubleshooting" on User' s Manual covers most service needs of this machine. Any problems of the operation, malfunction or requirements of quick-wear parts, pls contact TUWEI sales team as below for contact information of the nearest distributor/service center or direct service from TUWEI.
Company Name: ZHEJIANG VICTAULIC-TUWEI PIPING EQUIPMENT CO., LTD.
Address: No. 22 Beiyuan Avenue, Beicheng Development Zone, Huangyan,318020,Taizhou, Zhejiang Province, China
Tel: 0086-576-84715288
