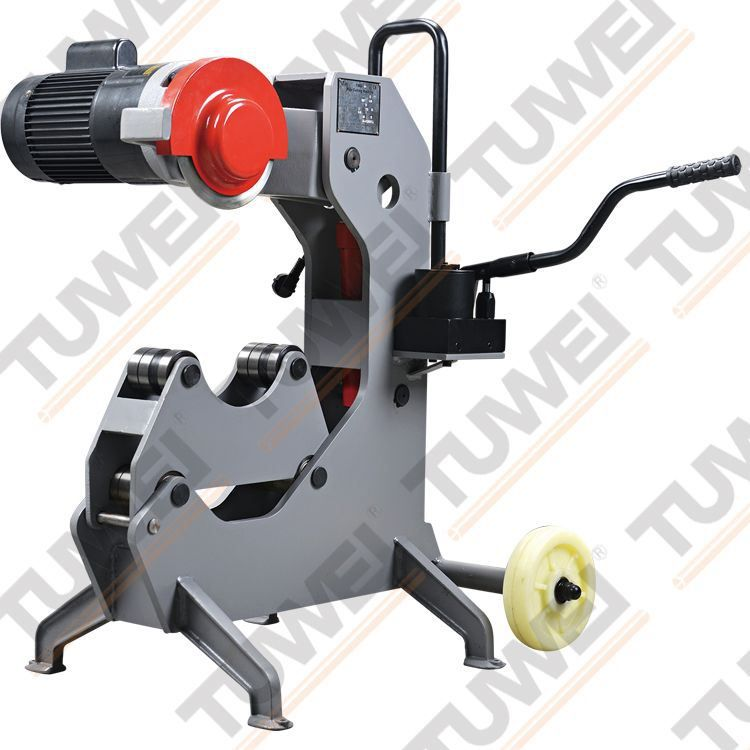

6"-16" PIPE CUTTING MACHINE (TWQ-IVA)

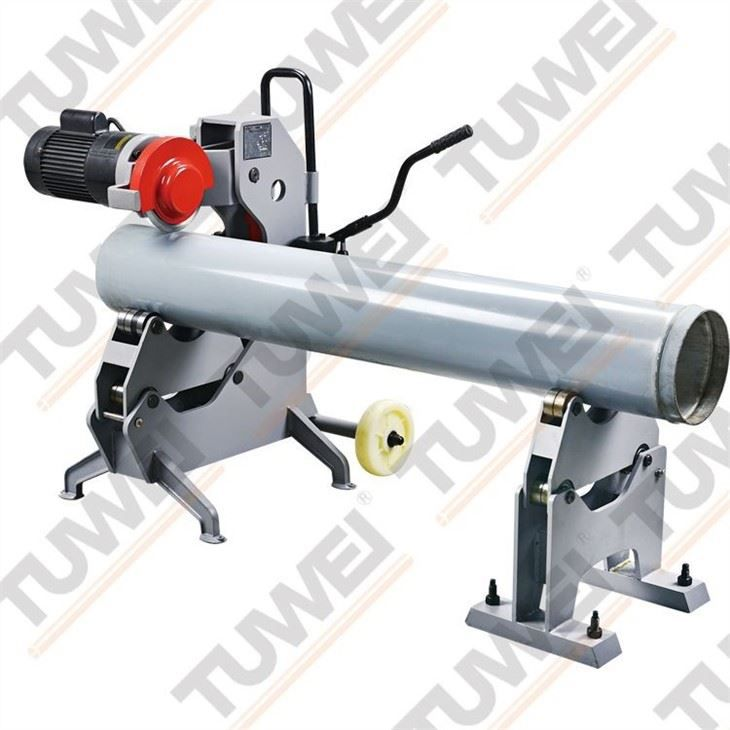

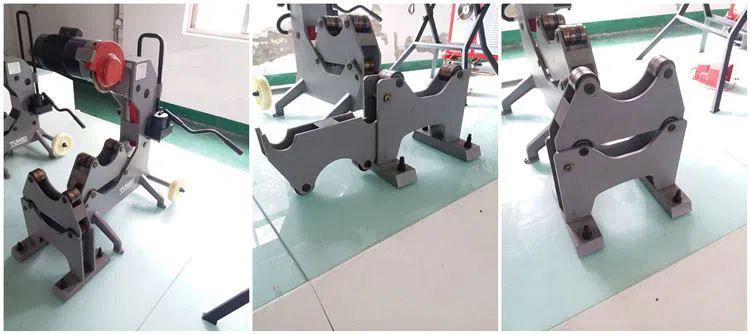

The Model NO.TWQ-IVA pipe cutting machine is for 6inch to 16inch SCH40 steel pipe. Powered by the 750W power drive. The body and the pipe stand of cutter are designed to be reversible.
Product Introduction
● Cold extrusion process design, no sparks, dusts and metal chips appear during cutting operation.
● The patented oil pump is specially designed to shorten the idle stroke and reduce the working time.

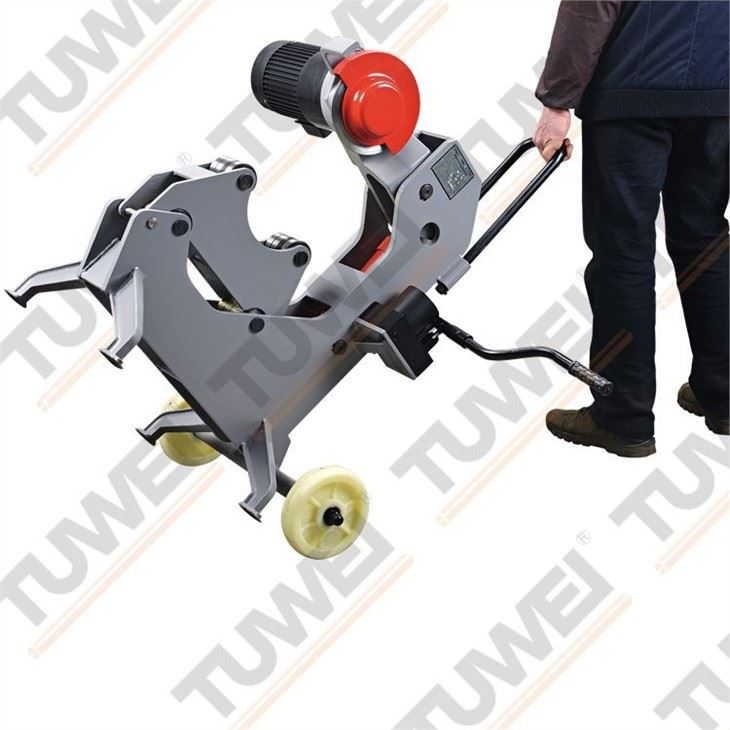

● Equipped with wheels for moving the machines easily.
Specifications
● Capacity: 6"-16"(Φ 168-Φ 426) SCH40 steel pipe.
● Max. wall thickness: 12mm.
● Output RPM: 23rpm.
● G. W: 180kgs.
● Packaging size: 87x82x122(cm).

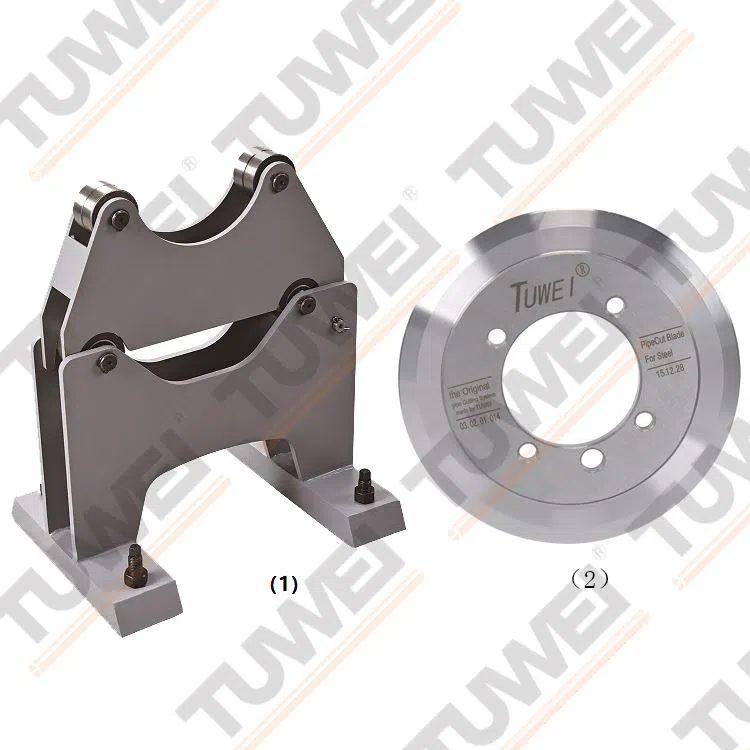

Standard Equipment | |||
*For SCH40 steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
09.02.047 | Pipe stand | 26.5 | (1) |
03.02.01.014 | Alloy blade | 1.3 | (2) |
Product details
Motor Parameter | ||
Phase | Voltage | Frequency |
Single Phase | 110 / 120 / 220 / 230 / 240V | 50/60 Hz |
Three Phase | 220 /380 / 415 / 440V | 50/60 Hz |
Troubleshooting
Problem | Causes | Solutions |
No pressure in the oil cylinder. No action resulted from turning the handle. | 1. Insufficient hydraulic oil. | Add hydraulic oil. |
2. Dirt oil blocks the hole. | Replace the hydraulic oil. | |
3. Leakage occurs to the fitting surface of inlet valve. | Remove the screws and spring. Knock the small steel balls lightly to force out the air-tight surface. | |
The piston will move forward when the handle is forced downward, but it will return when the handle is released. | 1. Dirt oil blocks the hole. | Replace the hydraulic oil. |
2. Leakage occurs to the fitting surface of outlet check valve. | Remove the screws and spring. Knock the small steel balls lightly to force out the air-tight surface. | |
3. Leakage occurs to other position. | Trace the problem and reinstall. | |
Insufficient oil cylinder pressure. | The spring of safety valve breaks down. | Replace the safety valve. |
The tube escapes. | Improper direction and height of bracket. | Vary the direction and height of bracket. |
Company Information
TUWEI company development history
IN 2004 YEAE: Taizhou Huangyan Tuwei Construction Equipment Co., Ltd was established.
IN 2010 YEAR: TUWEI identify as state-level high-tech enterprises. And build the state-level high-tech research and development center.
IN 2015 YEAR: Designed and developed CHINA’s first DN600 roll grooving machine. The capacity is from 8inch to 24inch.
IN 2017 YEAR: TUWEI establish with VICTAULIC (An American company). The company name is change to ZHEJIANG VICTAULIC-TUWEI PIPING EQUIPMENT CO., LTD.
IN 2019 YEAR: Designed and developed CHINA’S first eight groove-head combined pipe grooving line.
Our Service
We provide:
● Best products and factory price.
● On-time delivery and the shortest delivery time.
● OEM and customized service.
● User manuals will go with relative machines.
● QC: All products will be checked before delivery.
● Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
● Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
● Operation Guidance: If you have any problem with operation, please feel free to contact us.
