8"-20" PIPE CUTTING MACHINE （TWQ-8A）
The model NO. TWQ-8A is design for the capacity from 8inch to 20inch of SCH40 steel pipe. It equipped the power motor with single phase 1100W or three phase 750W. The cutting pipe is free from burr and deformation because of the high quality saw blades. It looks very similar to the model NO. TWQ-IIIA and model NO.TWQ-IVA. TWQ-IIIA cut the max diameter of steel pipe is 12 inch, TWQ-IVA cut the max diameter of steel pipe is 16 inch.TWQ-8A can cut the max diameter of steel pipe reach to 20inch. The details you can find in each website.
PRODUCT INTRODUCTION
● Cold extrusion process design, no sparks, dusts and metal chips appear during cutting operation.
● The patented oil pump is specially designed to shorten the idle stroke and reduce the working time.
● Equipped with wheels for moving the machines easily.
SPECIFICATIONS
● Capacity: 8"-20" (Φ 219-Φ 530) SCH40 steel pipe.
● Max. wall thickness: 12mm.
● Output RPM: 23rpm.
● G. W: 190kgs.
● Packaging size: 87x82x122(cm).
Standard Equipment | |||
*For SCH40 steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
09.02.047 | Pipe stand | 26.5 | (1) |
03.02.01.014 | Alloy blade | 1.3 | (2) |
Motor Parameter | ||
Phase | Voltage | Frequency |
Single Phase | 110 / 120 / 220 / 230 / 240V | 50/60 Hz |
Three Phase | 220 /380 / 415 / 440V | 50/60 Hz |
PRODUCT DETAILS

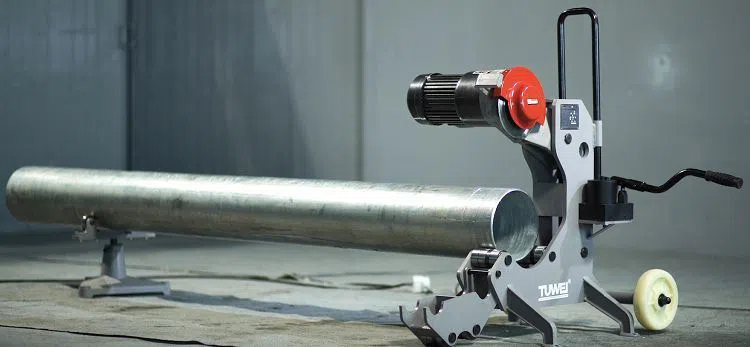

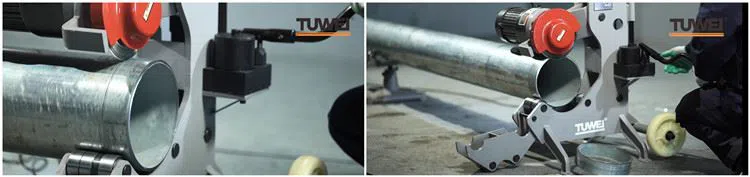

Easy to operate and efficient ,precision cut at the same time.

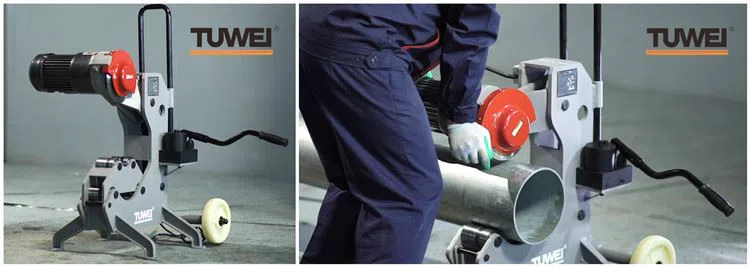

Equipped with wheels and pull rod. One person can carry it so easy.

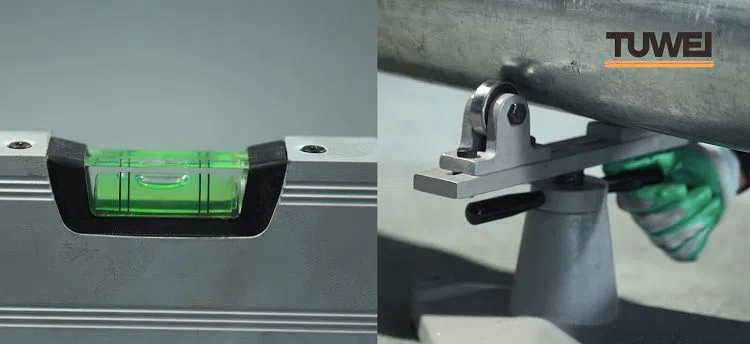

Choose corresponding supporting roller set according to pipe size, Put the pipe on the down roller set and pipe stand, the pipe stand should be placed at a position equal to 3/4 of pipe, adjust pipe stand height to make the pipe at horizontal level.

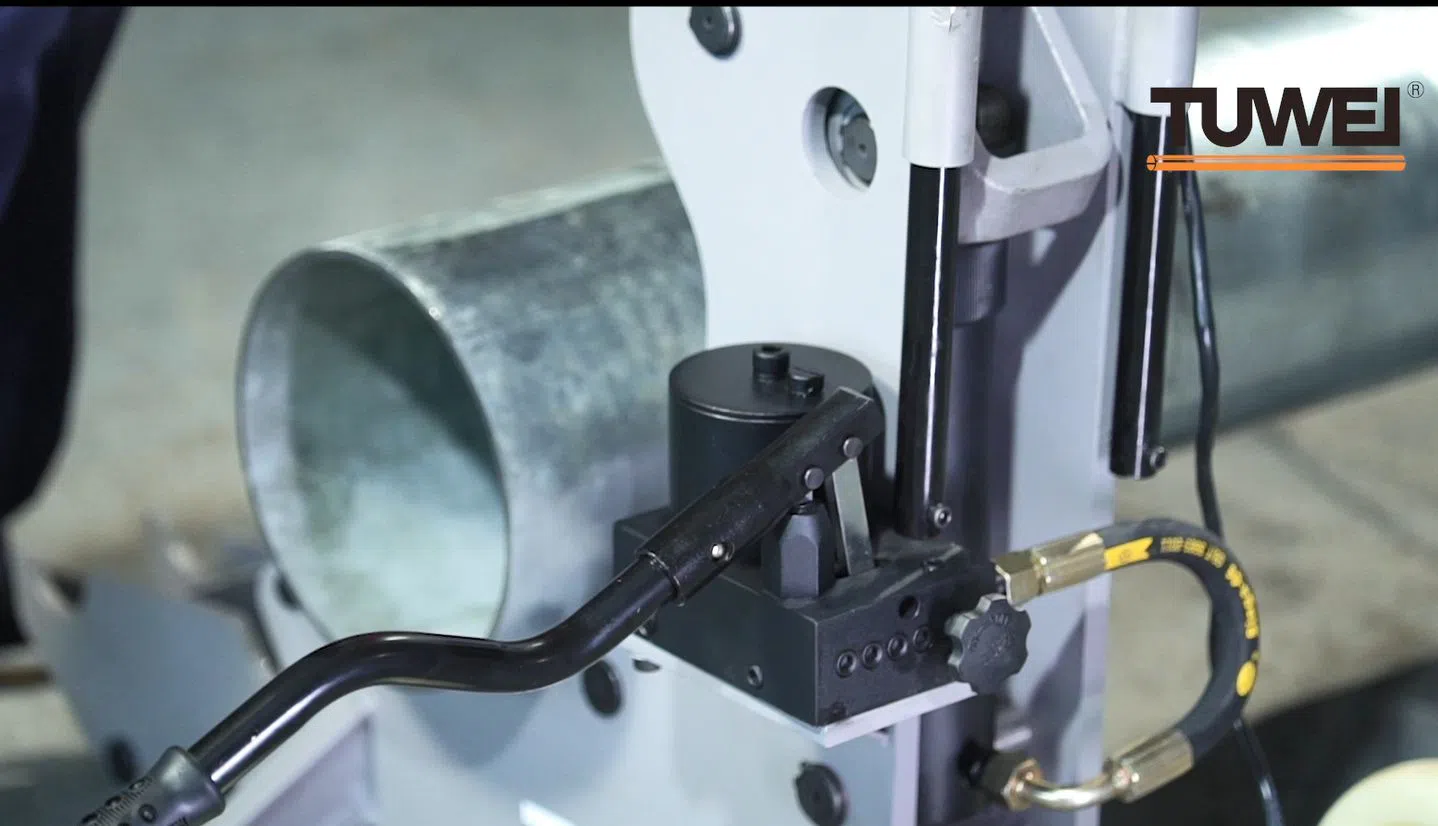

The patented oil pump is specially designed to shorten the idle stroke and reduce the working time.
PRODUCT FEATURE AND APPLICATION

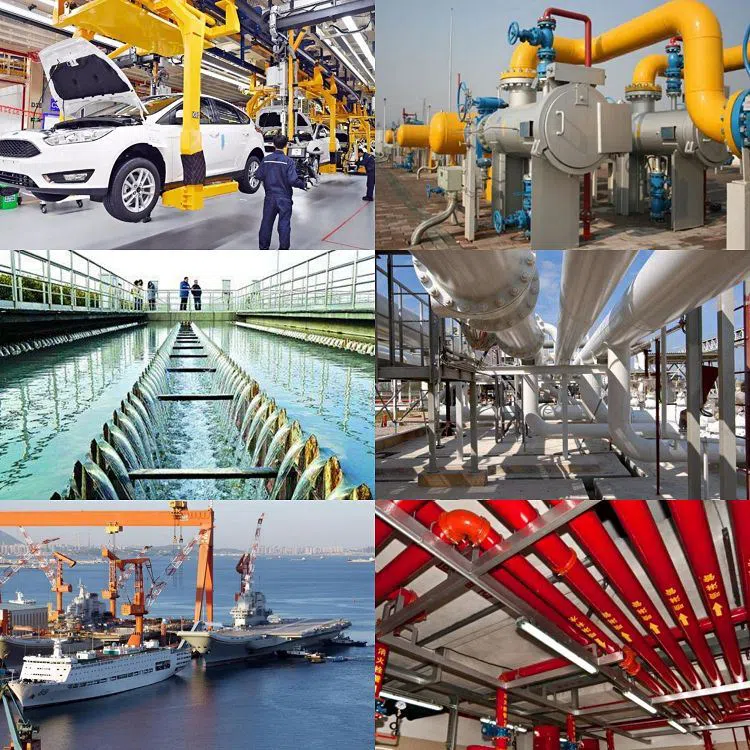

It is the best choice for cutting the steel pip on the following industry catering, pharmacy, Semiconductor Optoelectronics, Biology, chemical industry, oil & gas, Water Treatment, shipbuilding, Electric Power Industry, the automatic sprinkler system, etc.
OUR CERTIFICATE
Let us protect your orders from payment to deliver.
100% product quality protection.
100% on-time shipment protection.
100% payment protection.
Tuwei is ISO9001:2008 certified company. We got the CE certifications of all the exported products. In the past year. Tuwei developed many different kinds and models of the roll grooving machine, pipe cutting machine, hole cutting machine. We also identify as state-level high-tech enterprises. And build the state-level high-tech research and development center. We have obtained more than 30pcs patent certificates. With advanced processing equipment, perfect detections, strong technical team and very long time production experience and scientific management mode TUWEI develop continuously. We have become the famous brand and nominated supplier of some the big groups in the tools industry.
