1"-6" PIPE GROOVER (TWG-VA-R)
Pipe Groover TWG-VA-R is designed to form rolled grooves at the end of pipes of Φ1"- Φ6" (33mm-168mm) up to wall thickness of 6mm. Three main parts - hydraulic system, power drive system and transmit system work together to easily complete the grooving job. It is an ideal tool for jobsite and workshop.
PRODUCT SPECIFICATION
● Model No.: TWG-VA-R
● Standard Capacity.:
Capable of grooving 1”-6” Schedule 20, Schedule 40 carbon steel pipes and stainless steel pipes with standard knurl wheel set.
● Extended Capacity.:
Capable of grooving 2”-12” Schedule 5S, Schedule 10S stainless steel pipes with optional knurl wheel set.
● Motor Parameter.:
Be supplied in various parameter according to order request to meet different power supply of different countries or regions.
● Operating Speed.:23RPM
● Packing Details:Wooden Case 95cmx53cmx65cm
● Gross Weight:96kg
● Standard Roller Set
No. | Description | N.W (kgs) | Quantity |
1 | Knurl Wheel Φ33- Φ48 | 0.895 | One (1) |
2 | Knurl Wheel Φ57- Φ89 | 1.1 | One (1) |
3 | Knurl Wheel Φ108- Φ168 | 1.605 | One (1) |
4 | Pinch Roller Φ33- Φ48 | 0.685 | One (1) |
5 | Pinch Roller Φ57- Φ168 | 0.46 | One (1) |
● Optional Roller Set
No. | Description | N.W (kgs) | Quantity |
1 | Thin-wall Knurl Wheel Φ33- Φ48 | 1.65 | One (1) |
2 | Thin-wall Knurl Wheel Φ57- Φ89 | 1.115 | One (1) |
3 | Thin-wall Knurl Wheel Φ108- Φ168 | 1.995 | One (1) |
PRODUCT DETAILS

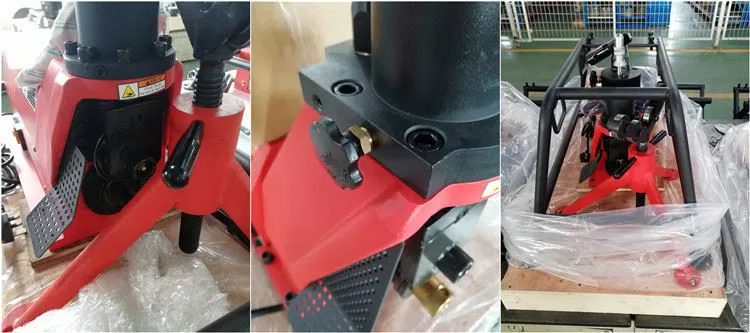

Accurate size and assembly.
Extremely good surface finish.
One tool set with tool bag included for each machine.
Machine body packed inside the rack to save transport and storage space.
Plastic bag and desiccant inside reduce moisture during sea shipment.

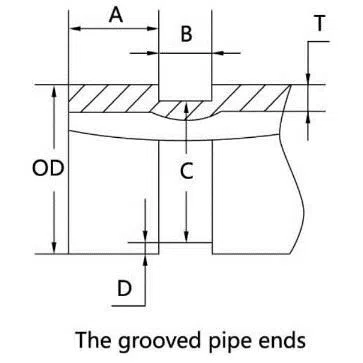

STANDARD ROLL GROOVE SPECIFICATION
Dimensions-millimeters | |||||||
Pipe Outside Diameter | Gasket Seat “A”±0.76 | Groove Width “B” ±0.76 | Groove Dia. “C” | Groove Depth “D” | Min. Allow Wall Thk. “T” | Max Allow. Flare Dia. “F” | |
Basic | Tol. +0.00 | ||||||
33.4 | 15.88 | 7.14 | 30.23 | -0.38 | 1.60 | 1.65 | 36.3 |
42.2 | 15.88 | 7.14 | 38.99 | -0.38 | 1.60 | 1.65 | 45.0 |
48.3 | 15.88 | 7.14 | 45.09 | -0.38 | 1.60 | 1.65 | 51.1 |
60.3 | 15.66 | 8.74 | 57.15 | -0.38 | 1.6 | 1.65 | 63.0 |
73.0 | 15.88 | 8.74 | 69.09 | -0.46 | 1.98 | 2.11 | 75.7 |
76.1 | 15.88 | 8.74 | 72.26 | -0.46 | 1.98 | 2.11 | 78.7 |
88.9 | 15.88 | 8.74 | 84.94 | -0.46 | 1.98 | 2.11 | 91.4 |
101.6 | 15.88 | 8.74 | 97.38 | -0.51 | 2.11 | 2.11 | 104.1 |
108.0 | 15.88 | 8.74 | 103.73 | -0.51 | 2.11 | 2.11 | 110.5 |
114.3 | 15.88 | 8.74 | 110.08 | -0.51 | 2.11 | 2.11 | 116.8 |
127.0 | 15.88 | 8.74 | 122.78 | -0.51 | 2.11 | 2.41 | 129.5 |
133.0 | 15.88 | 8.74 | 129.13 | -0.51 | 2.11 | 2.77 | 135.9 |
139.7 | 15.88 | 8.74 | 135.48 | -0.51 | 2.11 | 2.77 | 142.2 |
141.3 | 15.88 | 8.74 | 137.03 | -0.56 | 2.13 | 2.77 | 143.8 |
152.4 | 15.88 | 8.74 | 148.08 | -0.56 | 2.16 | 2.77 | 154.9 |
159.0 | 15.88 | 8.74 | 154.68 | -0.56 | 2.16 | 2.77 | 161.3 |
165.1 | 15.88 | 8.74 | 160.78 | -0.56 | 2.16 | 2.77 | 167.6 |
168.3 | 15.88 | 8.74 | 163.96 | -0.56 | 2.16 | 2.77 | 170.9 |
| |||||||
FAQ
Q: Where are you located?
A: We are located in Taizhou City, Zhejiang Province, China. And our nearest port is Ningbo Port, and the alternative port is Shanghai Port. For more information, please feel free to contact us.
Q: Is there a minimum order quantity?
A: No, we do not have MOQ request. And we could accept a trial order.
