1"-8" FOLDING ROLL GROOVING MACHINE (TWG-9A)
TWG-9A folding roll grooving machine is as small and easy to carry as TWG-VAR roll grooving machine. But the working capacity is a wider range of work than the model No. TWG-VAR. The working capacity is 1" to 8" SCH40 steel pipe. The machine foot is designed with folding carriage.
PRODUCT INTRODUCTION
● The new model of roll grooving machine TWG-9A including working capacity of TWG-IIIA, TWG-VA and TWG-VA-R, it is more efficient and stable.
● Equipped with stronger power and make rollers change quick and simple.
● Equipped with the new designed folding carriage, it is simple to assemble and move it.
SPECIFICATIONS
● Capacity:1“-8" ( Φ 33- Φ 219)SCH40 steel pipe.
● Max. wall thickness: 8mm.
● Output RPM: 23rpm.
● G. W: 100kgs.
● Packaging size: 75x41x72(cm).
Standard Equipment | |||
*For SCH40 steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
09.02.051 | Pipe stand | 6.5 | (1) |
03.01.14.001 | Knurl wheel Φ 33-Φ 48 | 1.55 | (2) |
03.01.14.002 | Knurl wheel Φ 57-Φ 89 | 1.195 | (3) |
03.01.14.003 | Knurl wheel Φ 108-Φ 168 | 1.775 | (4) |
03.01.14.004 | Knurl wheel Φ 219 | 1.635 | (5) |
03.01.14.016 | Pinch roller Φ 33-Φ 48 | 1.12 | (6) |
03.01.14.015 | Pinch roller Φ 57-Φ 168 | 0.76 | (7) |
03.01.14.014 | Pinch roller Φ 219 | 0.665 | (8) |
Motor Parameter | ||
Phase | Voltage | Frequency |
Single phase | 110/120/220/230/240V | 50/60Hz |
Three Phase | 220/380/ 415/ 440V | 50/60 Hz |

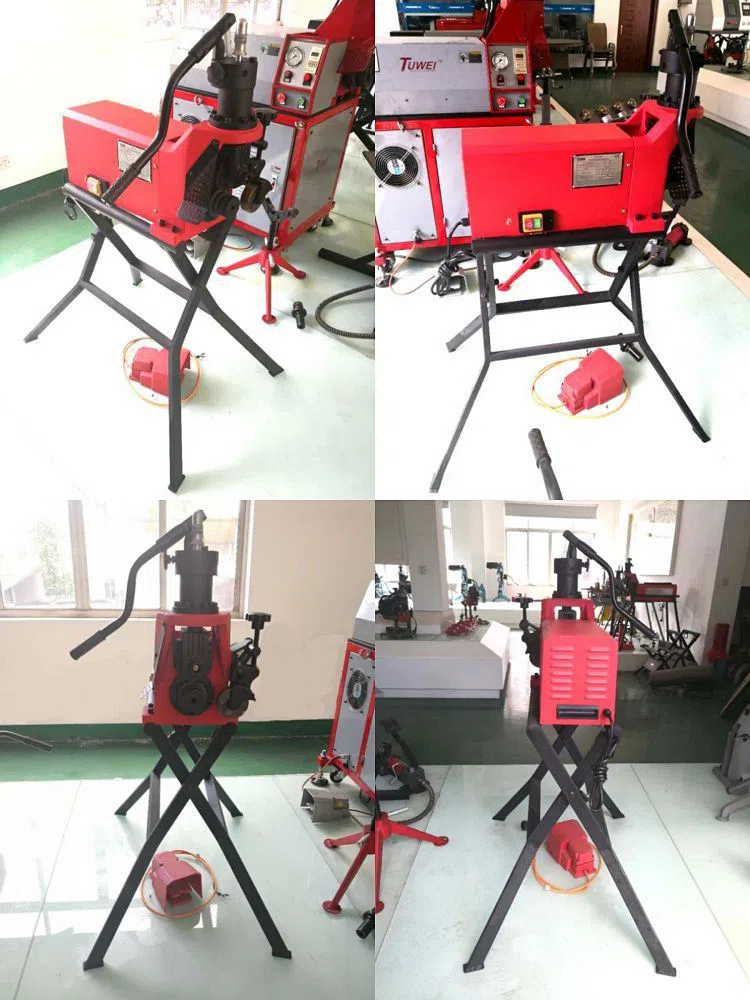

PRODUCTION DETAILS
● If groove over 3inch steel pipe please use the guide wheel unit. As image (1)
● The machine foot parts can be folded and stored. As image (2)
● Knurl wheel and pinch roller is easy to install and remove. select the correct size of knurl wheel and pinch roller to groove the steel pipe. As image (3)
● Put the pipe stand onto the 3/4 position. Make the pipe is under 1-2 degree under horizontal. As image (4)
FAQ
Q1: We would like to know if you are a manufacturer or a trading company?
A1: We are a professional pipe tools factory while roll grooving machine, pipe cutting machine and hole cutting machine are our main products.
Q2: How long is your delivery time?
A2: Generally 15 days after the down payment. OEM delivery time depends.
Q3:What is your terms of payment?
A3:Payment<=USD5000, 100% in advance. Payment>=USD5000, 30% T/T in advance, 70% T/T before shipment.
Q4: MOQ
A4: 1 set machine.
Q5: What is your terms of delivery?
A5: EXW, FOB, CFR, CIF.
Q6: What can I get the quotation?
A6: We usually quote within 24 hours after we get your inquiry. If you are urgent, you can give me your email so that we will regard your inquiry priority.
Q7: How do I operate this roll grooving machine?
A7: Don't worry, we have our company own CD/Manual to show you along with the machine. So you can learn this from the existing documents to deepen your knowledge and understanding. If you have any inquiry, please do not hesitate to contact us.
