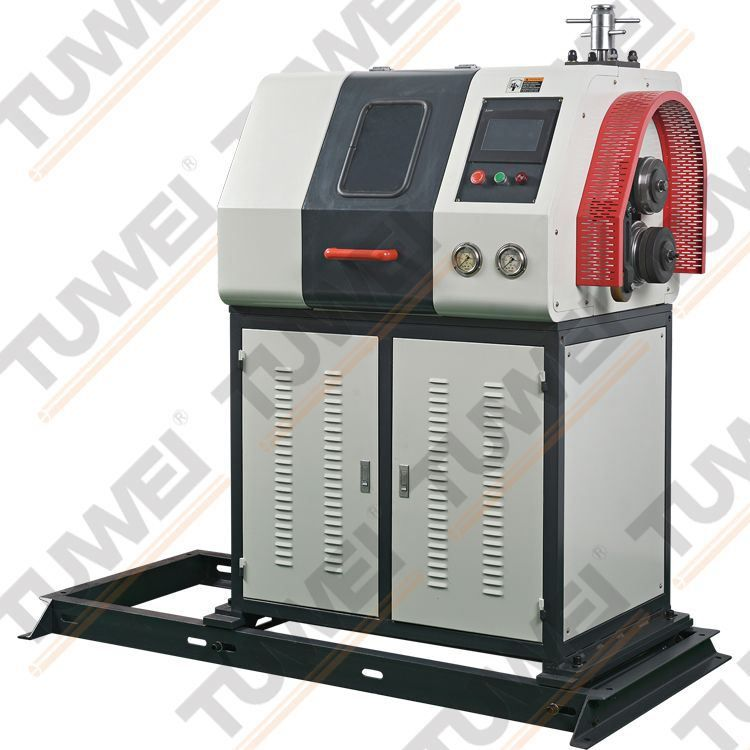

2"-12" AUTOMATIC ROLL GROOVING MACHINE (TWG-10A)
This is the TWG-10A automatic tube roll grooving machine. This innovative machine is capable of 2"-12" steel pipe and plastic lining steel pipe groove at the touch of a button. TWG-10A automates these processes. It modernizes and simplifies the grooving process, production accurate and repeatable grooves in a safer working environment for the operator.
PRODUCT INTRODUCTION
● This machine is designed for automatic production line of steel pipes.
● The electrical system, hydraulic system are controlled by computer with touch screen operation.
● Achieve 100% automatic production after assembled with the steel pipe production line.
● Output RPM of spindle is variable for different steel pipes improve the work efficiency greatly.
SPECIFICATIONS
● Capacity:2“-12"( Φ 60- Φ 325) SCH40 steel pipe and SCH30 plastic lining steel pipe.
● Max. wall thickness: 10mm.
● Output RPM: 45rpm.
● G. W: 1070kgs.
● Packaging size: 180x94x180(cm).
Standard Equipment | |||
*For SCH40 steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
03.01.15.023 | Knurl wheel Φ60 – Φ89 | 1.9 | |
03.01.15.024 | Knurl wheel Φ100 – Φ168 | 4 | |
03.01.15.025 | Knurl wheel Φ219 – Φ325 | 10 | |
03.01.15.020 | Pinch roller Φ60 – Φ89 | 6.3 | |
03.01.15.021 | Pinch roller Φ100 – Φ168 | 4.3 | |
03.01.16.022 | Pinch roller Φ219 – Φ325 | 4.1 | |
*For SCH30 plastic-lining steel pipe | |||
03.01.015.014 | Knurl wheel DN50 | 1.9 | |
03.01.015.013 | Knurl wheel DN65 | 2.4 | |
03.01.015.012 | Knurl wheel DN80 | 2.8 | |
03.01.015.011 | Knurl wheel DN100 | 4 | |
03.01.015.010 | Knurl wheel DN125 | 2.9 | |
03.01.015.009 | Knurl wheel DN150 | 6.5 | |
03.01.015.008 | Knurl wheel DN200-DN300 | 10 | |
03.01.015.002 | Pinch roller DN50-DN80 | 6.3 | |
03.01.015.003 | Pinch roller DN100 | 4.3 | |
03.01.015.004 | Pinch roller DN125 | 4.1 | |
03.01.015.005 | Pinch roller DN150 | 3.4 | |
03.01.015.006 | Pinch roller DN200-DN300 | 3.3 | |
Motor Parameter | ||
Phase | Voltage | Frequency |
Three Phase | 220/380/ 415/ 440V | 50/60 Hz |
PRODUCT APPLICATION

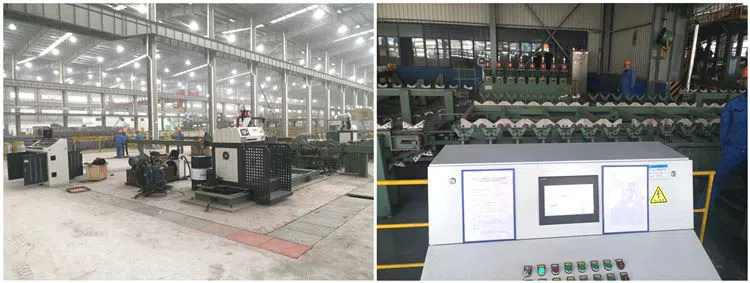

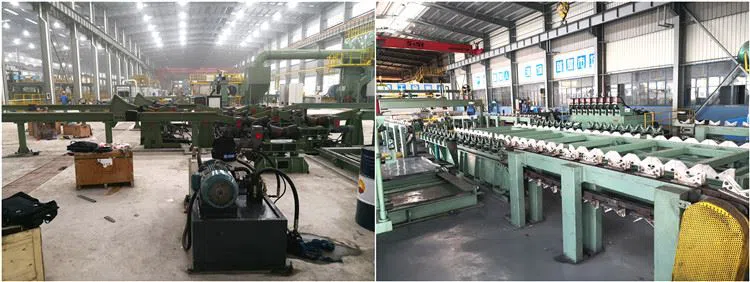

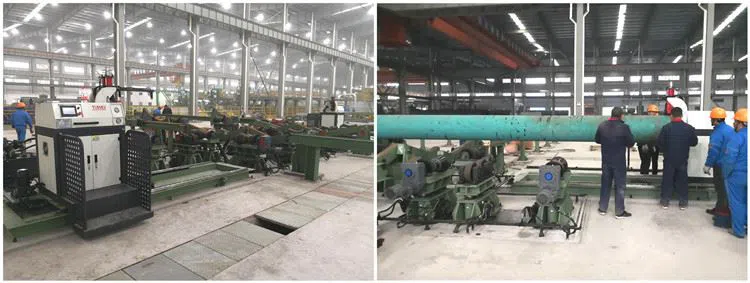

We can customize the pipe pre-groove assembly line professionally for customers. Automatic feeding is available. It can save the labor. Below is the successful case of automatic assembly line for steel pipe factory.
TROUBLESHOOTING
Common Fault | As a Result of | Settlement |
The steel pipe does not running. | The surface of Down-wheel dirty. | Clean the surface of Down-wheel. |
The surface of steel pipe dirty. | Clean the surface of steel pipe. | |
Pattern on the surface of Down-wheel abrasion. | Replace the Down-wheel. | |
Power cut. | Check power supply and mail switch. | |
There is sound when steel pipe running. | There is weld seam on the steel pipe. | Sanding the pipe. |
Noisy when pipe running every time. | End face does not perpendicular to the pipe. | Re-working the end face. |
Steel pipe rub the Down-wheel. | Support deflect the center of machine, adjusting. | |
Flow control valve set up too low | Adjust. | |
Flare | Support set up too high. | Re-set up. |
Flow control valve set up too high, feeding fast. | Adjust. | |
Guide-wheel located un-correct, steel pipe deflect the center of Chief-axis | Adjust. | |
|
