2"-12"HYDRAULIC ROLL GROOVING MACHINE (TWG-IIA)
TWG-IIA hydraulic roll grooving machine with a capacity range of 2"-12"steel pipe. Safe operation of the compact and very sturdy construction of this machine. Fine adjustment for groove depth and regulation.
PRODUCT INTRODUCTION
● TWG-IIA hydraulic roll grooving machine is designed for grooving 2"-12"steel pipe.
● Powered by high-performance gear reducing motor contributing to compact size and low noise.
● Unique integral hydraulic pump structure and groove depth limitation device ensure high quality grooves and high working efficiency.
SPECIFICATIONS
● Capacity.
2"-12"(Φ 60-Φ 325) SCH40 steel pipe
2"-12" (Φ 60- Φ 325) SCH10S SH5S SCH10 SCH5 thin wall steel pipe
● Max. wall thickness: 10mm
● Output RPM: 23rpm
● G. W: 158kgs
● Packaging size: 78x70x92(cm)
Standard Equipment | |||
*For SCH40 steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
09.02.031 | Pipe stand | 18 | (2) |
03.01.01.016 | Knurl wheel Φ 60-Φ 76 | 0.545 | (3) |
03.01.01.015 | Knurl wheel Φ 89-Φ 168 | 1.265 | (4) |
03.01.01.014 | Knurl wheel Φ 219-Φ 325 | 1.415 | (5) |
03.01.01.026 | Pinch roller Φ 60-Φ 168 | 0.885 | (6) |
03.01.01.025 | Pinch roller Φ 219-Φ 325 | 0.85 | (7) |
*Reminding: Please select TWG-IVA if groove large number of 12 inch pipes | |||
Optional Equipment | ||
*For SCH10S SCH5S SCH10 SCH5 thin wall steel pipe | ||
Art. No. | Description | N.W(kgs) |
09.03.009 | Knurl wheel Φ 60-Φ 76 | 0.55 |
09.03.010 | Knurl wheel Φ 89-Φ 168 | 1.28 |
09.03.011 | Knurl wheel Φ 219-Φ 325 | 1.43 |
Motor Parameter | ||
Phase | Voltage | Frequency |
Single Phase | 110 / 120 / 220 / 230 / 240V | 50/60 Hz |
Three Phase | 220 /380 / 415 / 440V | 50/60 Hz |
OUR ADVANTAGES
1. Competitive price: direct manufacturer, reducing all unnecessary cost for you.
2. Good service: Customer is first
3. Professional team:16 years foreign customers service experience. We identified as state-level high-tech enterprises in 2010 years.
4. Globally acceptable quality: The products offered by us are thoroughly examined by our experienced professionals to ensure their durability, reliability and long service life. Tuwei is ISO9001: 2008 certified company. We got the CE certifications of all the exported products.
SYSTEM AUTHENTICATION

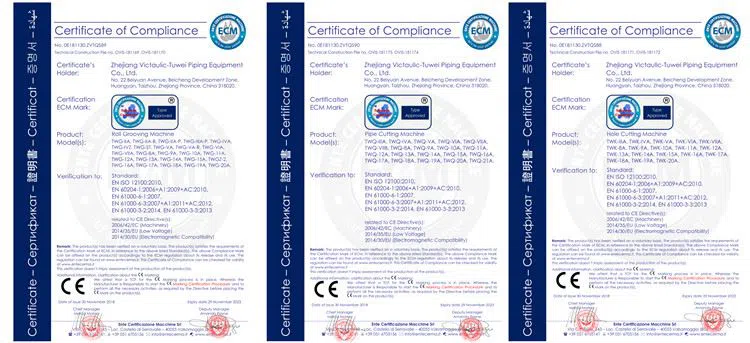

CE CERTIFICATE
INVENTION PATENT
FAQ
Q1:We would like to know if you are a manufacturer or a trading company?
A1:We are a professional pipe tools factory while roll grooving machine, pipe cutting machine and hole cutting machine are our main products.
Q2:How long is your delivery time?
A2:Generally 15 days after the down payment. OEM delivery time depends
Q3:What is your terms of payment?
A3:Payment<=USD5000, 100% in advance. Payment>=USD5000, 30% T/T in advance, 70% T/T before shipment.
Q4:MOQ
A4:1 set machine.
Q5:What is your terms of delivery?
A5:EXW, FOB, CFR, CIF.
Q6:What can I get the quotation?
A6:We usually quote within 24 hours after we get your inquiry. If you are urgent, you can give me your email so that we will regard your inquiry priority.
Q7:How do I operate this roll grooving machine?
A7:Don't worry, we have our company own CD/Manual to show you along with the machine. So you can learn this from the existing documents to deepen your knowledge and understanding. If you have any inquiry, please do not hesitate to contact us.
