2"-12" PIPE GROOVER WITH FOOT SWITCH(TWG-IIA-B)
The 2"-12" Pipe Groover with Foot Switch TWG-IIA-B is a completely self-contained unit with induction motor, roller set, safety foot switch and pipe stand. With a powerful motor and strong hydraulic system, it produces high quality grooves on 2"-12" Pipes up to a wall thickness of 10mm. It is an ideal groover for jobsite and workshop requirements.
PRODUCT FEATURES

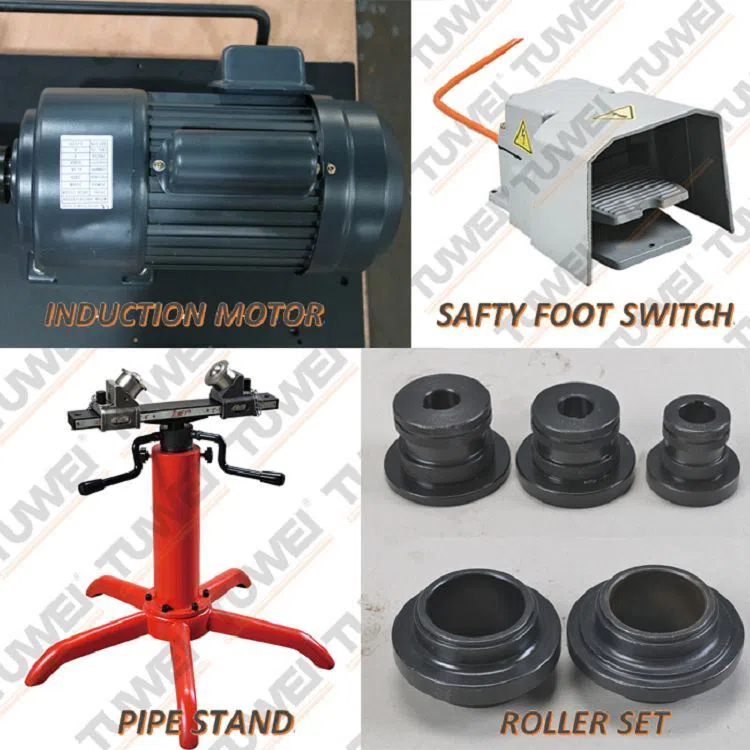

● Completely self-contained unit with induction motor, safety foot switch, roller set, and pipe stand.
● Equipped with 4 easily detachable legs for quick set-up.
● Foot switch offers safety at work and hands-free operation.
● Optional knurl wheel set for thin-wall stainless steel pipes is available.
● Steady and quiet operation thanks to the induction motor.
PRODUCT SPECIFICATION
● Model No.:TWG-IIA-B
● Capacity:
2"-12" (Φ60- Φ325) Schedule 20, Schedule 40 steel pipe
2"-12" (Φ60- Φ325) Schedule 20S, Schedule 40S stainless steel pipe.
Capable of roll grooving 2"-12" (Φ60- Φ325) Schedule 5S, Schedule 10S stainless steel pipe with optional knurl wheel set.
● Motor Parameter:
Single-phase, 220V,1.1KW 50/60Hz
Tri-phase, 380V, 0.75KW, 50/60Hz
Various motor parameter available in accordance with the different demands of different areas.
● Motor Control:
On/off switch with foot switch
● Speed:23RPM
● Maximum Working Pressure :8000kg
● Maximum Oil Cylinder Pressure:40MPa
● Packing Dimension:78cm x 70cm x 92cm
● Weight:170kg Gross

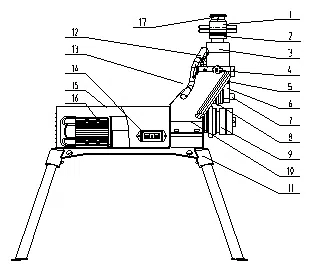

MAJOR ACCESSORIES
No. | Description | Quantity |
1 | Limit Fastening Nut | One (1) |
2 | Limit Nut | One (1) |
3 | Oil Cylinder | One (1) |
4 | Relief Valve | One (1) |
5 | Slide | One (1) |
6 | Roller Frame | One (1) |
7 | Pinch Roller Shaft | One (1) |
8 | Safety Cover of Power Head | One (1) |
9 | Knurl Wheel Φ60-Φ76 | One (1) |
Knurl Wheel Φ89- Φ 168 | One (1) | |
Knurl Wheel Φ219- Φ 325 | One (1) | |
10 | Power Head | One (1) |
11 | Bracket | One (1) |
12 | Handle Seat | One (1) |
13 | Handle | One (1) |
14 | Cable Quick Connector | One (1) |
15 | Safety Cover | One (1) |
16 | Induction Motor | One (1) |
17 | Scale Rule Cover | One (1) |
OPTIONAL ACCESSORIES
Descriptio | Image | Quantity |
Thin-wall Knurl Wheel Φ60-Φ76 | | One (1) |
Thin-wall Knurl Wheel Φ89-Φ168 | | One (1) |
Thin-wall Knurl Wheel Φ219-Φ325 | | One (1) |
*The optional accessories are used for 2”-12” SCH5S, SCH10S thin-wall stainless steel pipes. | ||
Notice: Read carefully all instructions in TWG-IIA-B User’s Manual and all warning labels on the machine before setting-up, operating or maintaining the machine.
FAQ
Q1: How is this machine packed?
A1: The machine is packed in export standard wooden case.
Q2: Do you have stock of this machine?
A2: No, we don’t. All machines are produced according to the purchase order.
Q3: What’s the lead time of this machine?
A3: Normally, the lead time is around 15-20days after the order confirmation. Pls always consult with sales team for the lead time in case of any unusual situation.
Q4: We have stainless steel pipes. Can we buy your machine for use?
A4: Yes, of course. We have different knurl wheel sets for different pipes. Pls advise us of the specifications of your stainless steel pipes in detail.
