2"-12"ROLL GROOVING MACHINE(TWG-IIAB)
TWG-IIAB roll grooving machine which install the foot switch on the basis of TWG-IIA roll grooving machine. Tuwei roll grooving machine is anti-flare roll grooving capability to control pipe end flare. It is suitable for equipment installation, sprinkler system, large excavation device, mining industry and industrial application and so on.
CAPACITY
TWG-IIAB heavy duty roll grooving machine forms rolled grooves in 2"-12"SCH40 steel pipe and SCH10S SCH5S SCH10 SCH5 thin wall steel pipe.
SPECIFICATIONS
Max. wall thickness: 10mm
Output RPM: 23rpm
G. W: 158kgs
Packaging size: 78x70x92(cm)
STANDARD EQUIPMENT | |||
*For SCH40 steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
09.02.031 | Pipe stand | 18 | (2) |
03.01.01.016 | Knurl wheel Φ 60-Φ 76 | 0.545 | (3) |
03.01.01.015 | Knurl wheel Φ 89-Φ 168 | 1.265 | (4) |
03.01.01.014 | Knurl wheel Φ 219-Φ 325 | 1.415 | (5) |
03.01.01.026 | Pinch roller Φ 60-Φ 168 | 0.885 | (6) |
03.01.01.025 | Pinch roller Φ 219-Φ 325 | 0.85 | (7) |
09.02.032 | Foot switch | 1.2 | (8) |
*Reminding: Please select TWG-IVA if groove large number of 12 inch pipes | |||
OPTIONAL EQUIPMENT | ||
*For SCH10S SCH5S SCH10 SCH5 thin wall steel pipe | ||
Art. No. | Description | N.W(kgs) |
09.03.009 | Knurl wheel Φ 60-Φ 76 | 0.55 |
09.03.010 | Knurl wheel Φ 89-Φ 168 | 1.28 |
09.03.011 | Knurl wheel Φ 219-Φ 325 | 1.43 |
MOTOR PARAMETER | ||
Phase | Voltage | Frequency |
Single Phase | 110 / 120 / 220 / 230 / 240V | 50/60 Hz |
Three Phase | 220 /380 / 415 / 440V | 50/60 Hz |
PRODUCTER DETAILS

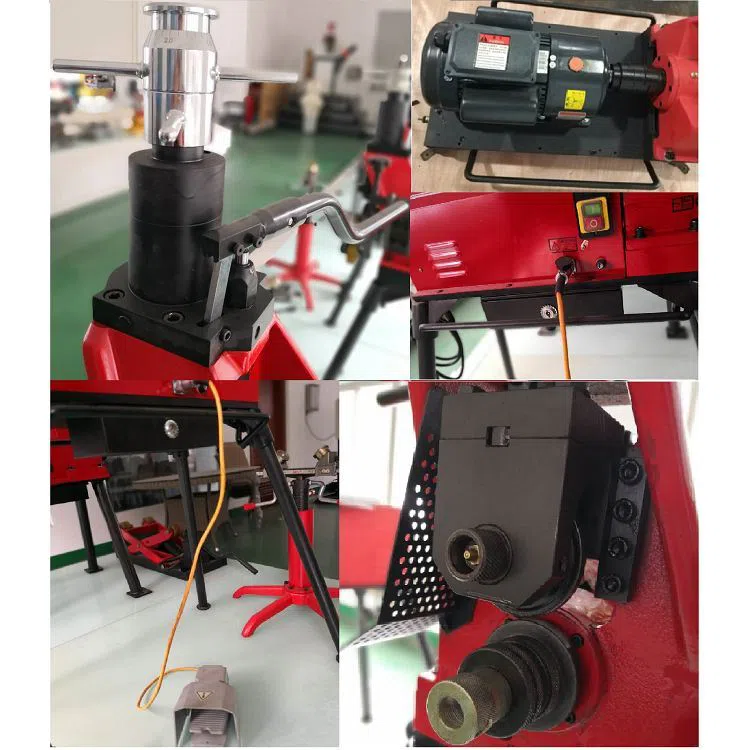

● Unique integral hydraulic pump structure and groove depth limitation device.
● TWG-IIAB Power roll groover powered by 1100W reducing motor, It ensures steady and quiet working. And there is low noise.
● The Separate knurling roller design of drive shaft for convenient replacement changing.
● Own storage box for storage the roller and other tools.
● Equipped with a humanized armrest to facilitate moving the machine.
● The split-type hydraulic system coupled with foot switch enables safer and easier operation.
PACKING AND DELIVERY

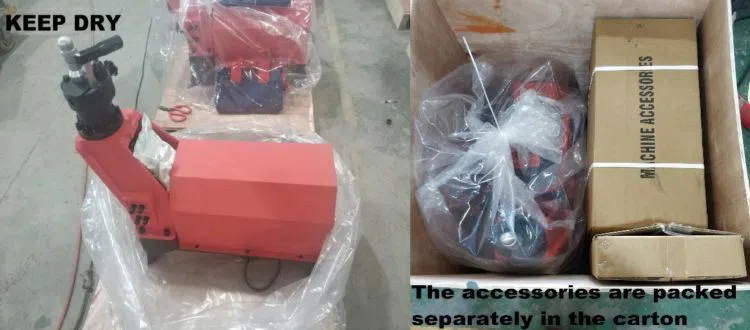

TWG-IIAB roll grooving machine can be shipped by sea, by air and by courier.
Firstly. The bolts fasten the machine to the bottom plate. Which will prevent the TWG-IIA Power roll groover collision during transportation.
Secondly. We use the plastic bags to seal the packing, Then put the dryer into the plastic bags to keep the machine dry.
Thirdly. the accessories are packed separately in the carton. Help customers find them quickly.
Finally, the strong wooden case encloses TWG-IIA Power roll groover, and the packing is easy to disassemble.
FACTORY INSTRODUCTION
Zhejiang Victaulic-Tuwei Piping Equipment CO.,LTD was established in 2004. Tuwei has been identified as state-level high-tech enterprise in 2010.
Tuwei developed many different kinds and models of the roll grooving machine, pipe cutting machine, hole cutting machine, pipe threading machine.
