8"-24" HYDRAULIC ROLL GROOVING MACHINE (TWG-IVA)
The TWG-IVA hydraulic roll grooving machine powered by 2200W induction motor, hydraulic pump and convenient depth adjusting function, which is capable of grooving 8"-24" SCH 40 standard wall steel pipe. “Separate knurling roller" design of drive shaft for convenient replacement changing.
PRODUCT INTRODUCTION
● This machine is designed for grooving 8"-24" steel pipe. It's specified tool for the connection of heavy duty couplings and grooved pipes
● Equipped with new hydraulic pump and stroke limitation devices to make the depth of grooves more precisely and effectively.
● Powered by high-performance gear reducing motor, equipped with the guide wheel unit ensures high quality grooves and high working efficiency.

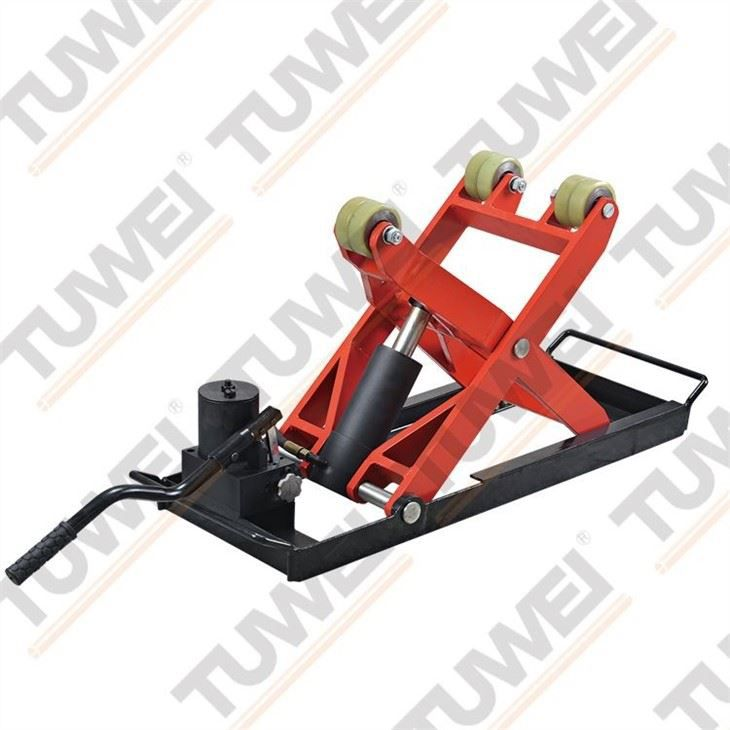

● Equipped with a foldable hydraulic steel pipe stand to make operation convenience and save labor
SPECIFICATIONS
● Capacity :8"-24"(Φ 219-Φ 630) SCH40 steel pipe.
● Max. wall thickness: 13mm.
● Output RPM: 15rpm.
● G. W: 340kgs.
● Packaging size: 102x75x147(cm).

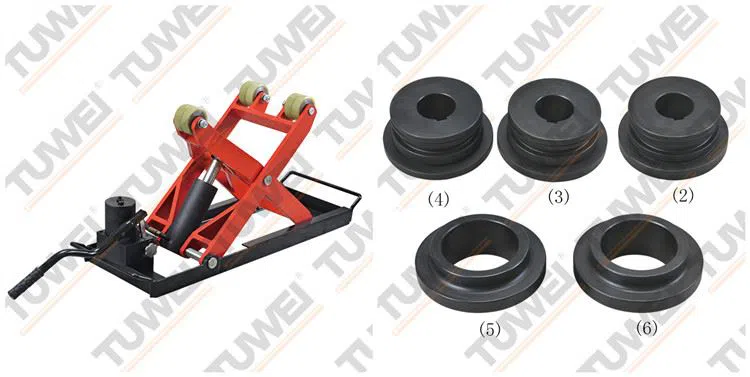

Standard Equipment | |||
*For SCH40 steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
09.02.034 | Pipe stand | 55 | (1) |
03.01.06.020 | Knurl wheel Φ 219-Φ 325 | 9 | (2) |
03.01.06.021 | Knurl wheel Φ 377-Φ 426 | 8.675 | (3) |
03.01.06.022 | Knurl wheel Φ 480-Φ 630 | 8.515 | (4) |
03.01.06.015 | Pinch roller Φ 219-Φ 530 | 1.29 | (5) |
03.01.06.016 | Pinch roller Φ 630 | 1.32 | (6) |
Motor Parameter | ||
Phase | Voltage | Frequency |
Three Phase | 220 /380 / 415 / 440V | 50/60 Hz |
OUR CERTIFICATE
Let us protect your orders from payment to deliver.
100% product quality protection.
100% on-time shipment protection.
100% payment protection.
FAQ
Q1: We would like to know if you are a manufacturer or a trading company?
A1: We are a professional pipe tools factory while roll grooving machine, pipe cutting machine and hole cutting machine are our main products.
Q2: How long is your delivery time?
A2: Generally 15 days after the down payment. OEM delivery time depends
Q3:What is your terms of payment?
A3:Payment<=USD5000, 100% in advance. Payment>=USD5000, 30% T/T in advance, 70% T/T before shipment.
Q4: MOQ
A4: 1 set machine.
Q5: What is your terms of delivery?
A5: EXW, FOB, CFR, CIF.
Q6: What can I get the quotation?
A6: We usually quote within 24 hours after we get your inquiry. If you are urgent, you can give me your email so that we will regard your inquiry priority.
Q7: How do I operate this roll grooving machine?
A7: Don't worry, we have our company own CD/Manual to show you along with the machine. So you can learn this from the existing documents to deepen your knowledge and understanding. If you have any inquiry, please do not hesitate to contact us.
