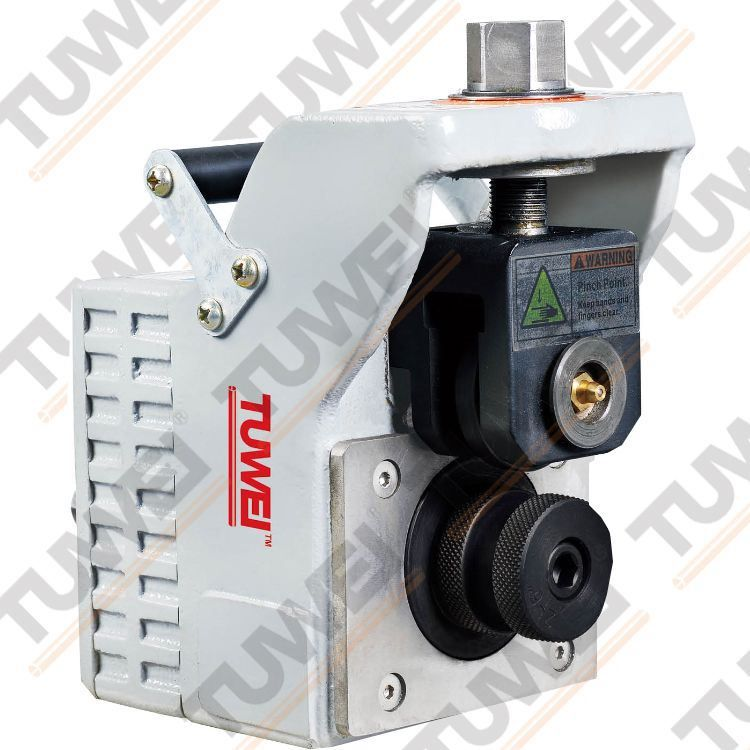

COMBO ROLL GROOVER (TWG-11A)
Combo Roll Groover TWG-11A is designed to manually roll groove pipes from 3/4” up to 8”. It can be either operated manually for in-the-air grooving application or used with TUWEI power drive 1T50 as other TUWEI electric roll grooving machines, for jobsite and workshop.
PRODUCT FEATURES
● Light and compact design allows for one-man operation.
● Ratchet wrench makes grooving easier.
● Easy operated for in-place overhead maintenance job.
● Grooves even when power is unavailable.
● Fits TUWEI Power Drive 1T50 and RIDGID 300 Power Drive.
● Quick and easy switch between manual use and power-driven use.
PRODUCT SPECIFICATION
● Model No.: TWG-11A
● Capacity.:
3/4"-8" (Φ27- Φ219) Schedule 20, Schedule 40 steel pipe with maximum wall thickness of 7.11mm.
3/4"-8" (Φ27- Φ219) Schedule 20S, Schedule 40S stainless steel pipe with maximum wall thickness of 7.11mm.
● Dimension.: 23cmx13cmx22cm
● Packing Dimension.: 40cm x 34cm x 30cm
● Weight.: 10.5kg Net / 17kg Gross

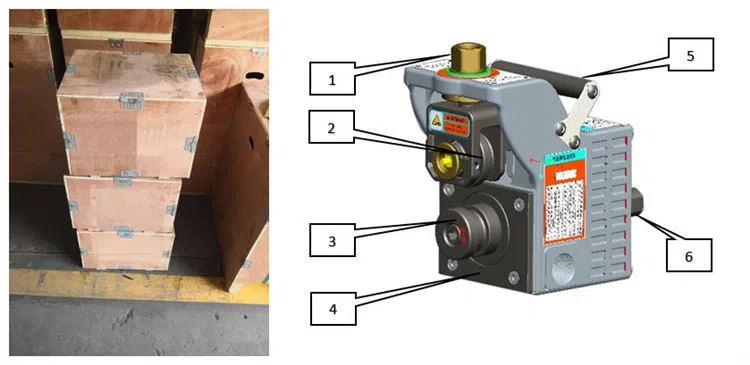

MAJOR ACCESSORIES
No. | Description | Quantity |
1 | Feed Nut | One (1) |
2 | Pinch Roller Φ27- Φ48 | One (1) |
Pinch Roller Φ60- Φ168 | One (1) | |
Pinch Roller Φ219 | One (1) | |
3 | Knurl Wheel Φ27- Φ33 | One (1) |
Knurl Wheel Φ42- Φ48 | One (1) | |
Knurl Wheel Φ60- Φ168 | One (1) | |
Knurl Wheel Φ219 | One (1) | |
4 | Benchmark Block | One (1) |
5 | Lifting Handle | One (1) |
6 | Main Shaft | One (1) |
1.Standard Roll Groove Specification
Dimensions-millimeters | |||
Pipe Outside Diameter | Gasket Seat “A”±0.76 | Groove Width “B”±0.76 | Groove Depth “D” |
26.7 | 15.88 | 7.14 | 1.42 |
33.4-48.3 | 15.88 | 7.14 | 1.6 |
60.3 | 15.88 | 8.74 | 1.6 |
73-88.9 | 15.88 | 8.74 | 1.98 |
101.6-139.7 | 15.88 | 8.74 | 2.11 |
141.3 | 15.88 | 8.74 | 2.13 |
152.4-168 | 15.88 | 8.74 | 2.16 |
203.2-219 | 19.05 | 11.91 | 2.34 |
Related definition
"A" Dimension- The "A" dimension, or the distance from the pipe end to the groove, identifies the gasket seating area. This area must be free from indentations, projections (including weld seams), and roll marks from the pipe end to the groove to ensure a leak-tight seal. All foreign material, such as loose paint, scale, oil, grease, chips, rust, and dirt must be removed.
"B" Dimension- The "B" dimension, or groove width, controls expansion, contraction, and angular deflection of flexible couplings by the distance it is located from the pipe and its width in relation to the coupling housings’ "key" width. The bottom of the groove must be free of all foreign material, such as dirt, chips, rust, and scale that may interfere with proper coupling assembly.
"D" Dimension- The "D" dimension is the normal depth of the groove and is a reference for a "trial groove" only. Variations in pipe OD affect this dimension and must be altered, if necessary, to keep the "C" dimension within tolerance. The groove diameter must conform to the "C" dimension described above.
2.Power-Driven Application

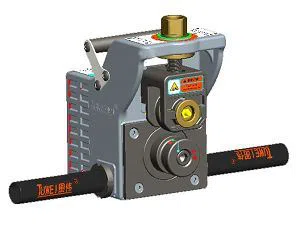

Step 1: Install the handle (Connecting rod) on both sides and fix them with small found nut. |  |

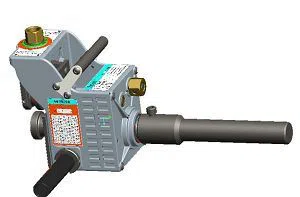

Step 2: Insert the connecting pipe on the main shaft and fix it with screw. |  |

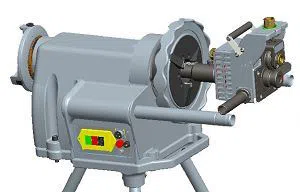

Step 3: Mounts TWG-11A on TUWEI 1T50 Power Drive or RIDGID 300 Power Drive, fix it with fore chuck. |  |
