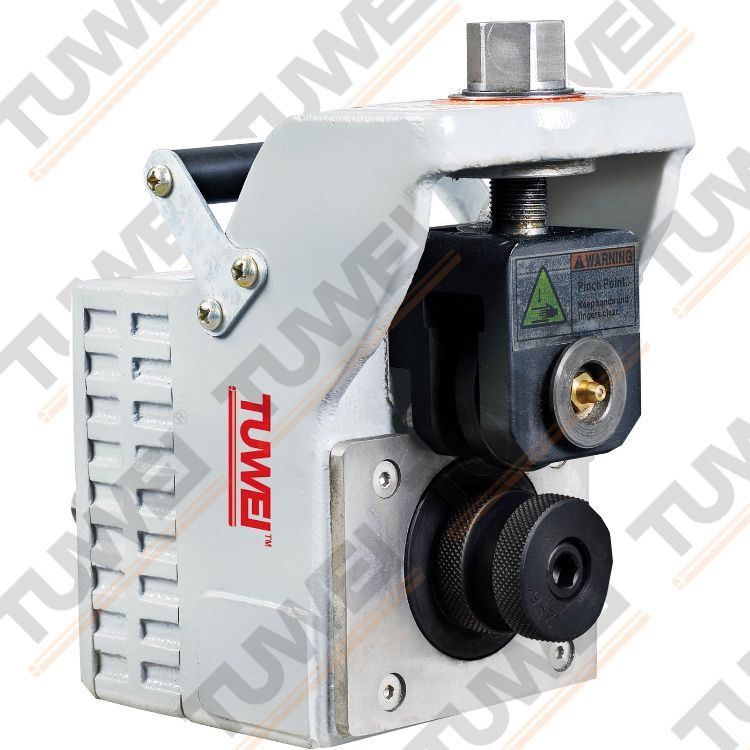

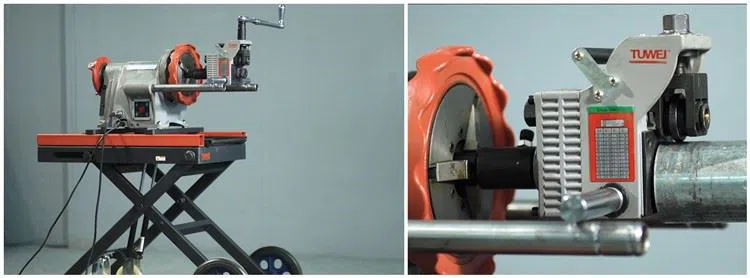

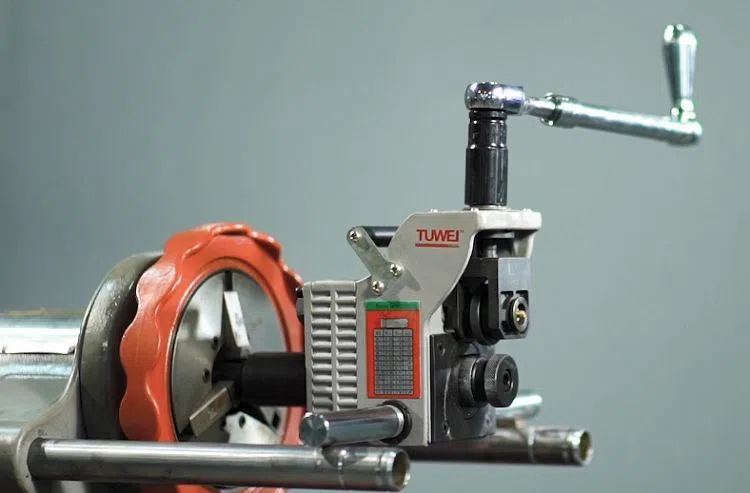

Manual Groover Mounted To Ridgid 300

*For SCH40 steel pipe

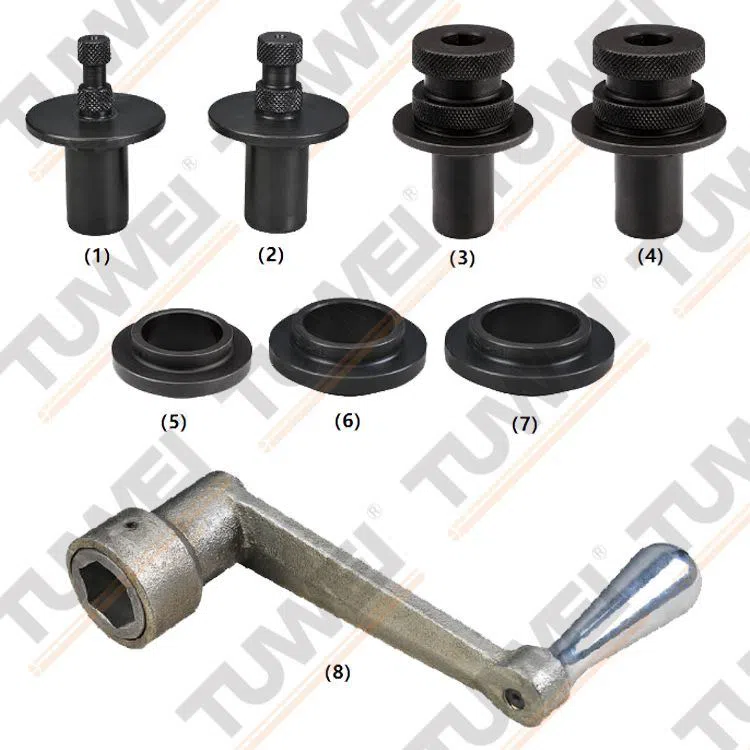

Art. No.

Description

N.W(kgs)

Ref No.

03.01.19.004

Knurl wheel Φ 27- Φ 33

0.4

（1）

03.01.19.005

Knurl wheel Φ 42- Φ 48

0.5

(2)

03.01.19.006

Knurl wheel Φ 60- Φ 168

0.7

(3)

03.01.19.007

Knurl wheel Φ 219

0.8

(4)

03.01.19.001

Pinch roller Φ 27 - Φ 48

0.1

(5)

03.01.19.002

Pinch roller Φ 60 - Φ 168

0.12

(6)

03.01.19.003

Pinch roller Φ 219

0.12

(7)

03.01.19.033

Handle

1.5

(8)

Groover shaking and  Cannot rotate.

1.There is some dust or rust happened on the fix points
2.Bottom knurl wheel wearing.

1.Remove the rust and dust using steel brush.
2.Check if the wearing of bottom knurl wheel is serious. If serous please change new wheel.

Groover shake when move surrounded with the pipe.

The pipe thickness is not even or the feeding speed is improper.

Try to change the feeding speed.

Groover slip away from the pipes .

1.Groover has not been placed onto the right position.
2.The end of the pipe is not smooth or improper speed.

1.Try to place the groover onto the right point which close to the benchmark block.
2(1).Cut the ends squarely
2(2).Change the right speed level.

Groover stop moving surrounded the pipe.

1.There is rust or dust on the inner surface of the pipe.
2.Bottom knurl wheel is wearing.
3.Roller pin is broken.

1.Remove the rust and dust using steel brush.
2.Check if the wearing of bottom knurl wheel is serious. If serous please change new wheel.
3.Change the roller pin.

Cacophony come out when grooving.

1.The end of the pipe is not square.
2.Too much friction with the benchmark block.

1.Cut the pipe ends squarely.
2.Grease the benchmark block.
