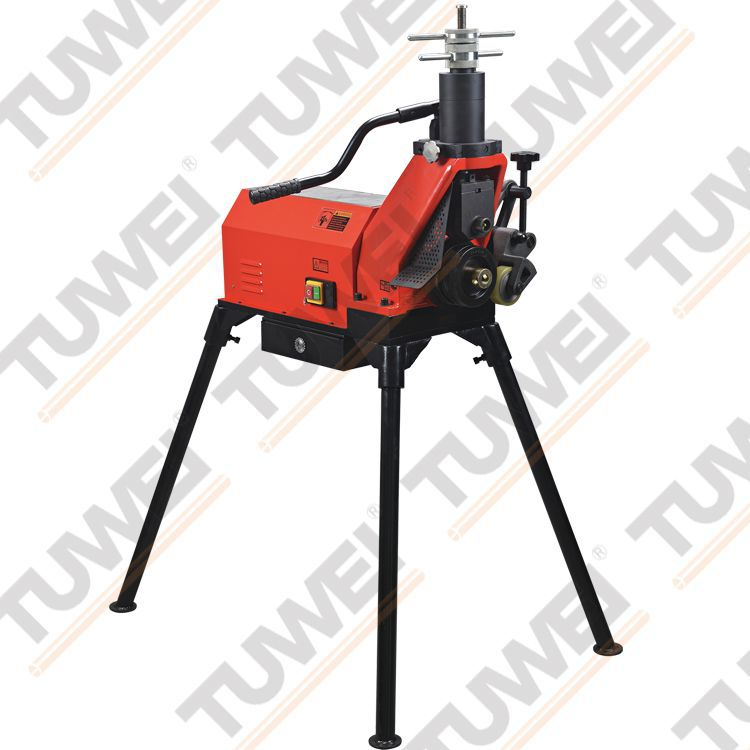

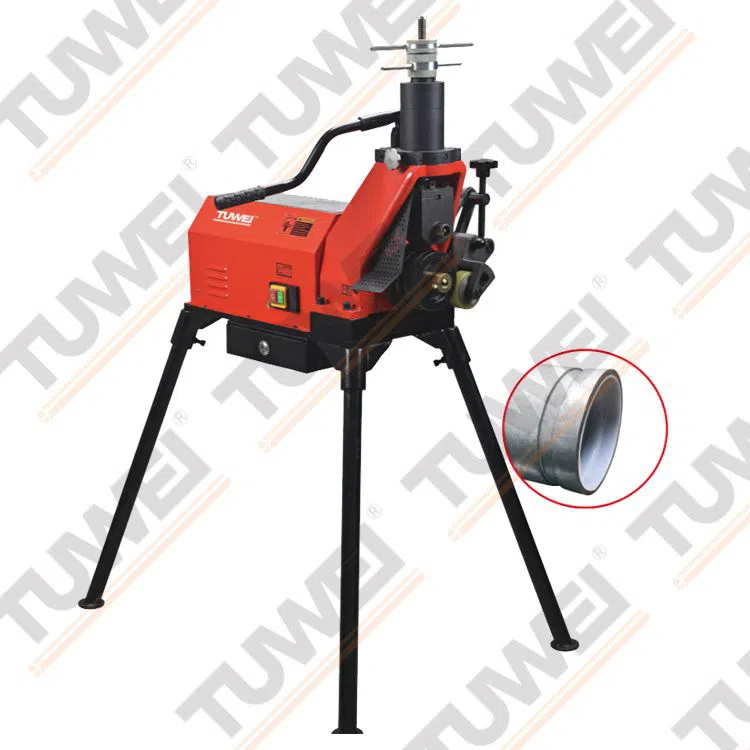

ROLL GROOVING MACHINE WITH PLASTIC-LINING (TWG-IIAP)
TWG-IIAP roll grooving machine custom-design for the 2” -12” plastic-lining steel pipe. The result-oriented design of roller ensure the plastic-lining no burst and the end of plastic-lining no flare.
PRODUCT INTRODUCTION
● TWG-IIAP roll grooving machine is designed for grooving 2"-12plastic-lining steel pipe.
● Unique integral hydraulic pump structure and adjustable stoke limitation device ensure easy, accurate and high performance working.
● Fast and economical feed of the pressure roller with oil-hydraulic pressure cylinder.
● Equipped with result-oriented design of rollers ensure the plastic lining no damage after grooving operation.
SPECIFICATIONS
● Capacity: 2"-12"(Φ 60-Φ 325)SCH30 plastic-lining steel pipe
● Max. wall thickness: 8mm (Excluding the thickness of plastic-lining)
● Output RPM: 23rpm
● G. W: 180kgs
● Packaging size: 78x72x92(cm)

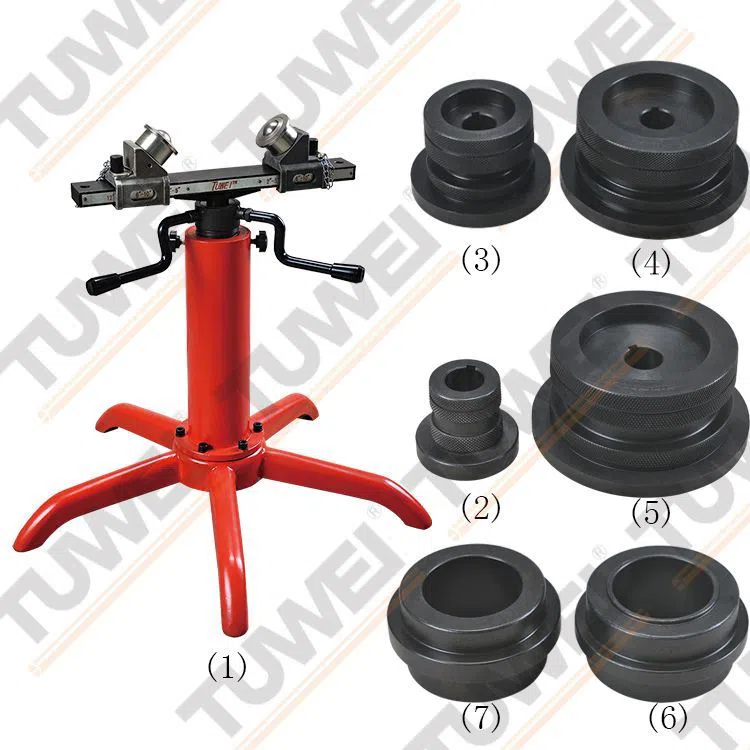

Standard Equipment | |||
*For SCH30 plastic-lining steel pipe | |||
Art. No. | Description | N.W(kgs) | Ref No. |
09.02.031 | Pipe stand | 18 | (1) |
03.01.04.004 | Knurl wheel Φ 60-Φ 89 | 0.535 | (2) |
03.01.04.003 | Knurl wheel Φ 108-Φ 140 | 2.485 | (3) |
03.01.04.001 | Knurl wheel Φ 159-Φ 168 | 5.945 | (4) |
03.01.04.002 | Knurl wheel Φ 219-Φ 325 | 5.71 | (5) |
03.01.04.010 | Pinch roller Φ 60-Φ 168 | 1.065 | (6) |
03.01.04.011 | Pinch roller Φ 219-Φ 325 | 1.075 | (7) |
Motor Parameter | ||
Phase | Voltage | Frequency |
Single Phase | 110 / 120 / 220 / 230 / 240V | 50/60 Hz |
Three Phase | 220 /380 / 415 / 440V | 50/60 Hz |
TROUBLESHOOTING
Problem | Causes | Solutions |
No pressure in the oil cylinder. No action resulted from turning the handle. | 1. Insufficient hydraulic oil. | Add hydraulic oil. |
2. Dirt oil blocks the hole. | Replace the hydraulic oil, clean the oil net. | |
3. Leakage occurs to the check valve. | Remove the screws and spring. Knock the small steel balls lightly to force out the airtight surface. | |
The piston will move forward when the handle is forced downward, but it will return when the handle is released. | 1. Dirt oil blocks the hole. | Replace the hydraulic oil. |
2. Leakage occurs to the check valve. | Remove the screws and spring. Knock the small steel balls lightly to force out the airtight surface. | |
3. Leakage occurs to other position. | Trace the problem and correct. | |
Insufficient oil cylinder pressure. | The spring of safety valve breaks down. | Replace the safety valve . |
The pipe escapes. | 1. Improper direction and height of bracket. | Vary the direction and height of bracket. |
2. Improper direction of steel pipe. | Toggle the clock-wise / anti-clockwise switch to change the rotation direction of spindle. | |
3. Rough end face of steel pipe. | Grind the end face. |

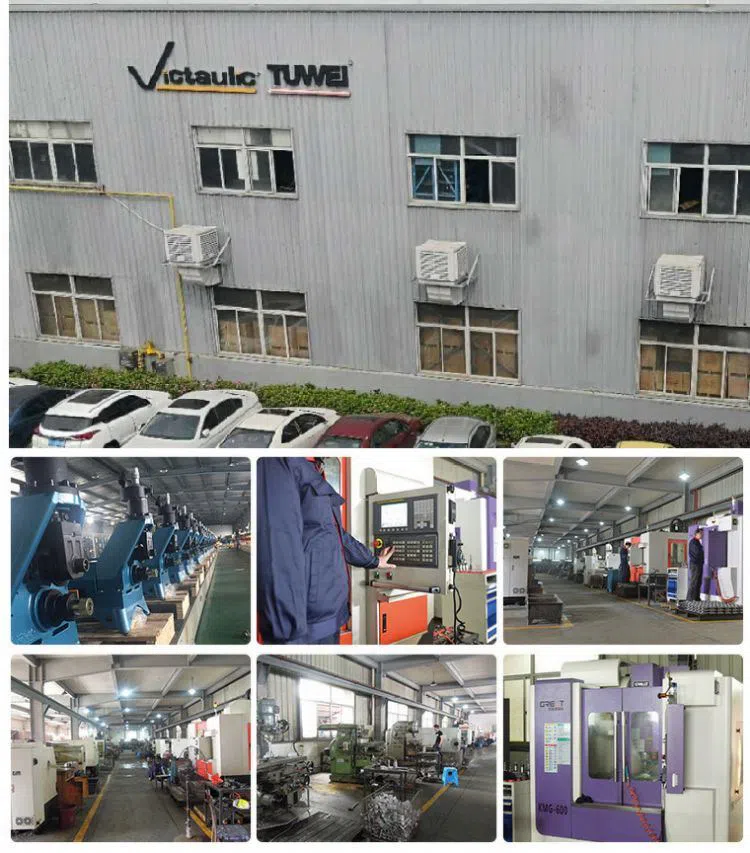

OUR FACTORY
The leading edge of manufacturing line, clean working site, orderly production process and prompt availability of technical support ensure reliable high quality. In the past decade huge investment has been used for upgrading workshop and production equipment.
Sincerely hope can get your inquiry and warmly welcome to our factory.
