1/2"-2" PIPE THREADING MACHINE(1T50)
1T50 type threading machine driven by the electric motor, the motor adopts brushless permanent magnet synchronous motor, multistage gear reduction, large torque. And keep constant speed when no load, reliable work, low noise, this machine can rotate, two speed gear, voltage 110V and 220V universal, In addition to the pipe sleeve processing, but also cut the pipe and remove the burr from the cut pipe，machine can roll groove on the pipe by the machine. The power is transferred to the default state (counterclockwise), speed 40RP.
The machine is not mounted on the bridge and the other components of the bridge is the power head, it can be flexibly combined with other devices (such as rolling machine) for operation.
PRODUCT INTRODUCTION
● This machine is designed to cut threads on 1/2"-2"pipes It's very easy to operate. Can make the ends of the pipes very smooth when cutting threads.
● Casting body with large module gear box which is very stable and light.
SPECIFICATIONS
● Thread forming ability: 1/8inch to 2inch tube, 1/4inch to 2inch bar.
● Power of motor: 1.8kw.
● Output Speed: 20rpm and 40rpm optional.
● Working current (2inch tube processing): 5amps(20RPM) or 6amps (40RPM)
● Gross Weight: 120kgs.
● Packaging size: 122x77x53(cm).
Standard Equipment | ||
Description | QTY | Ref No. |
Cart | 1set | (1) |

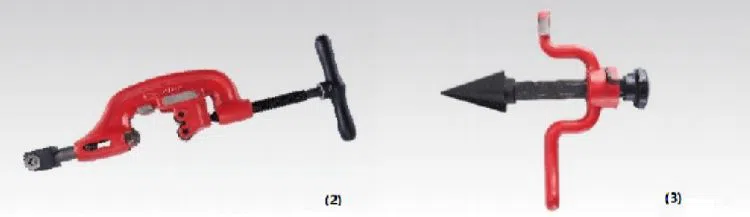

Cutting frame | 1set | (2) |
Reamer | 1set | (3) |

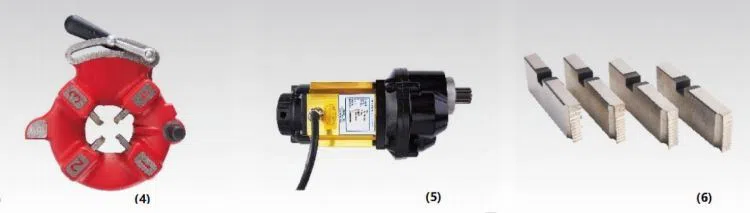

Dies ½”-3/4” ,1”-2” | 1set | (4) |
Dynamic system | 1set | (5) |
Die head | 1set | (6) |
Note: Available format of dies: NPT/BSPT | ||
PROCUCT FEATURE
● 1T50 pipe threading machine equipped the permanent magnet brushless motor. The power is 1800W. Offering a wide range of speed, small size, high starting torque, accuracy, with smooth turn characteristics; high efficiency, low power consumption, long service life and low noise performance.
● The cart as a driving power with versatile design, can be used as a power drive for many jobs, such as pipe grooving, pipe threading, pipe cutting. It mounted to the TWG-11A manual grooving machine.

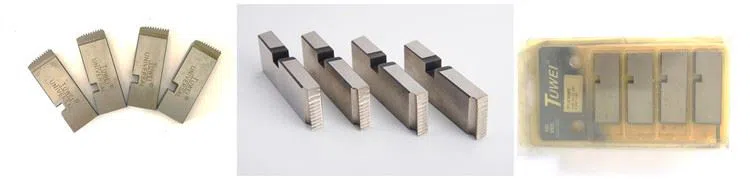

● The threading dies are made of high-speed steel. It has a long service life, which can thread at least 7000 to 8000 pieces pipe steel. The proven quality dies with precise cutting geometry ensure an excellent start-cutting performance, easy threading and ensure clean threads.
FACTORY INTRODUCTIO

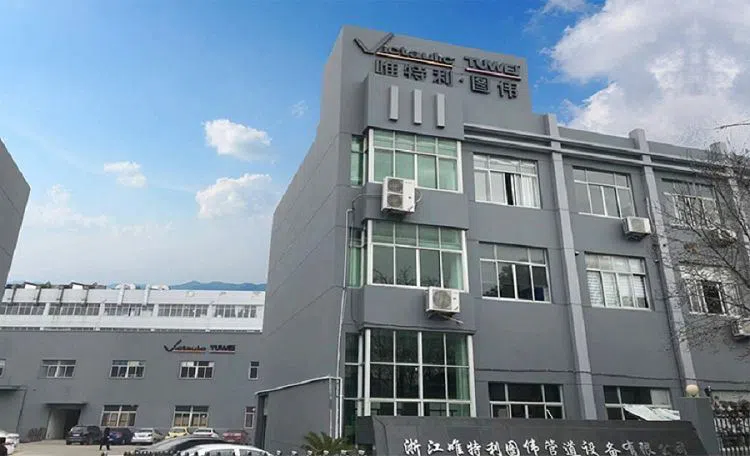

Zhejiang Victaulic-Tuwei Piping Equipment CO., LTD was established in 2004. Tuwei has been identified as state-level high-tech enterprise in 2010. TUWEI establish with VICTAULIC (An American company) in 2017. The company name is change to ZHEJIANG VICTAULIC-TUWEI PIPING EQUIPMENT CO., LTD.
Tuwei developed many different kinds and models of the roll grooving machine, pipe cutting machine, hole cutting machine, pipe threading machine.
The company always follow the faith: Survive by good quality. Develop by keeping good credit. We will always try our best to provide our best and most suitable products to customers. The developing TUWEI needs your more support and let’s stride forward!
